Bellows Elbows: The Ultimate Cable Protection Solution for Harsh & Precision Environments

In the intricate ecosystem of industrial equipment, electrical control systems, and outdoor infrastructure, cables are the lifeline transmitting power and signals. Yet they face relentless threats—moisture, dust, extreme temperatures, chemical corrosion, and mechanical vibration—that often lead to costly failures. Enter bellows elbows: a compact yet robust component engineered to shield cables while optimizing installation. From factory floors to storm-exposed outdoor sites, these elbows redefine reliability for critical connections.

1. The Hidden Threat: Why Standard Cable Protection Falls Short
Cable damage is a silent disruptor across industries. In automated factories, cutting fluids seep into unprotected joints, causing short circuits and production halts. Outdoor communication base station battle rain and sand, with dust-clogged connectors reducing signal reliability by 30%. Electrical control cabinets, the "brains" of equipment, suffer from moisture-induced corrosion that shortens component life by half. Standard connectors often fail here: plastic fittings crack in extreme temperatures, basic seals can’t withstand submersion, and rigid designs complicate cable routing. The result? Unplanned downtime that costs manufacturers an average of $260,000 per hour.

2. Core Advantages: What Makes Bellows Elbows Indispensable
Bellows elbows stand out with a fusion of advanced materials and thoughtful design, addressing industry pain points at every level:
Top-Tier Material Performance: Crafted from eco-friendly PA66 nylon, they boast exceptional mechanical strength to resist impact and torsion—critical for vibration-heavy machinery. This material also delivers superior electrical insulation, safeguarding high-voltage areas in control cabinets.
Maximum Environmental Protection: With an IP68 rating, they form an impenetrable barrier against dust and long-term submersion, outperforming standard IP65 alternatives. PA66’s inherent resistance to acids, alkalis, oil, and UV aging further ensures durability in harsh chemical or outdoor environments.
All-Weather Reliability: Engineered to perform from -40°C to 125°C, they maintain sealing integrity in frigid winters, scorching summers, or high-heat industrial processes. The sealing ring retains elasticity even in extreme temps, preventing leakages that cause system failures.
Dual Safety Assurance: ULV1 flame retardant certification stops fire spread during electrical faults, buying precious time for emergency response. Combined with PA66’s non-conductive properties, they minimize safety risks in high-risk areas.

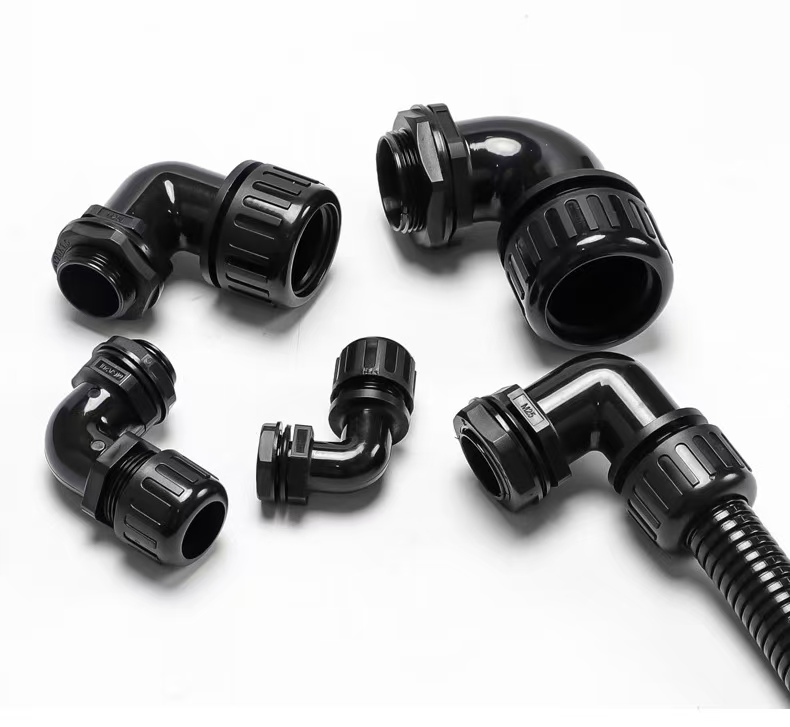

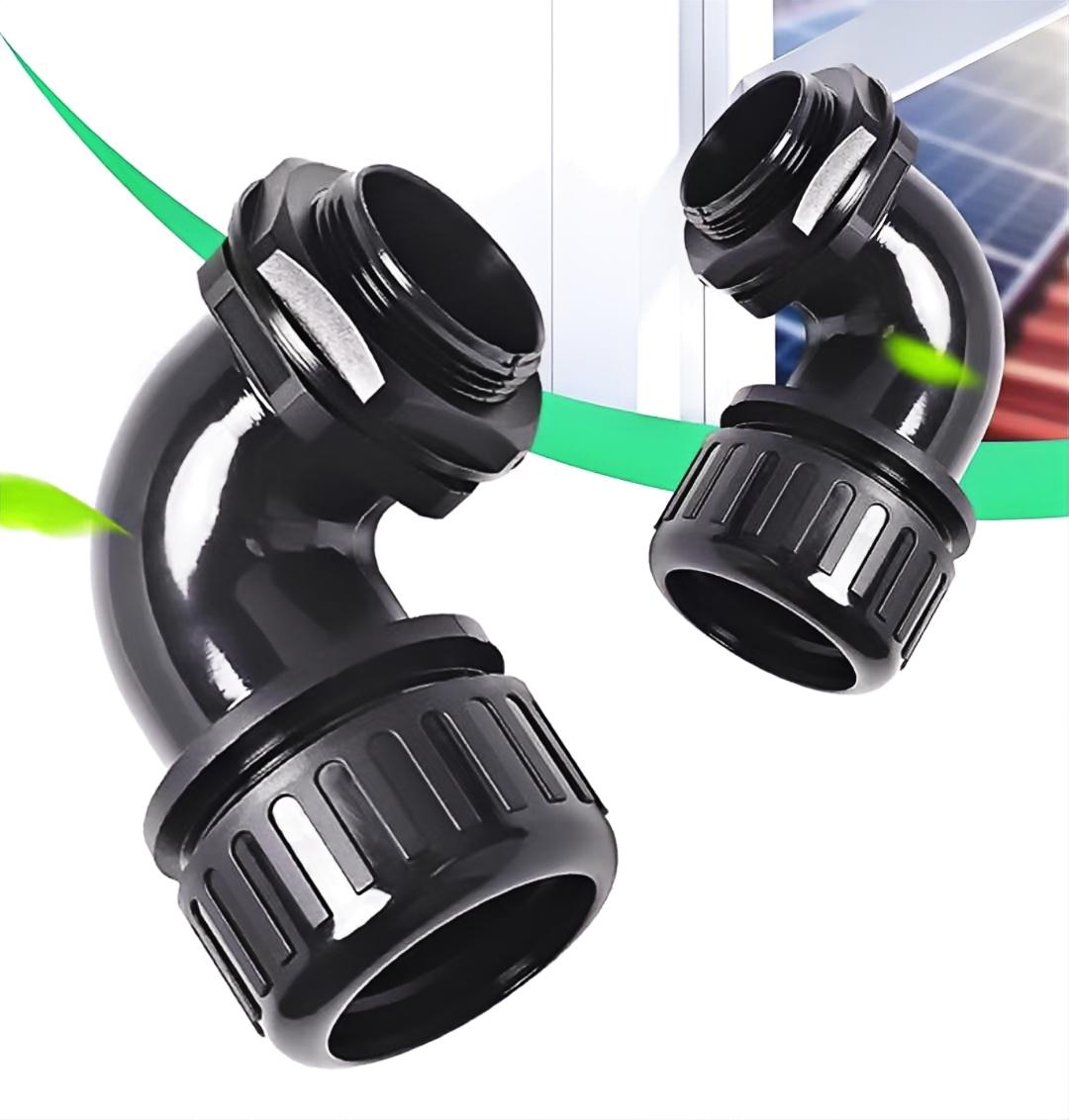

Versatile Compatibility: Available with M-type (metric) and PG-type (German) interface threads, they fit diverse cables and equipment, while 90°/45° designs optimize space in tight control cabinets.


3. Cross-Industry Applications: Where Bellows Elbows Shine
Designed for adaptability, bellows elbows prove their value in the most demanding scenarios:
Industrial Machinery: In CNC machines, injection molders, and automated lines, they shield cables from cutting fluids, metal debris, and constant vibration. The IP68 seal prevents fluid intrusion, reducing cable failure rates by 75% and keeping production lines running.
Electrical Control Cabinets: They manage cable entry while blocking moisture and conductive dust—key to avoiding corrosion and short circuits. Their compact elbow design reduces cable clutter, boosting cabinet heat dissipation efficiency by 20% and simplifying maintenance.
Outdoor Equipment: For communication base station, traffic signals, and solar inverters, they withstand rainstorm, sandstorms, and coastal salt spray. UV resistance prevents material embrittlement, ensuring year-round reliability even in extreme climates.
High-Value Niche Scenarios: In chemical plants, their corrosion resistance protects cables from harsh vapors; in new energy, they safeguard charging station and BMS interfaces with flame retardancy and temperature tolerance. For rail transit, they endure vibration,oil pollution, and temperature swings in locomotive equipment.

4. Customization: Tailoring to Specialized Needs
One size rarely fits all in industrial applications, and bellows elbows offer flexible customization to meet unique demands:
Environmental Upgrades: High-temperature rubber for applications exceeding 125°C, such as foundry equipment.
Dimensional Flexibility: Custom thread sizes and elbow angles for non-standard cabinet openings or specialized machinery.
Aesthetic & Functional Tweaks: Custom colors for brand alignment or safety coding, and anti-static modifications for electronics manufacturing.

5. The ROI of Reliable Cable Protection
Bellows elbows are not just a component—they’re an investment in efficiency. A mid-sized manufacturing plant reported:
60% reduction in unplanned downtime after adopting bellows elbows
50% lower annual cable replacement and maintenance costs
Extended control cabinet component life by 3+ years

In industries where downtime equates to lost revenue, the value of robust cable protection is undeniable.
