The corrugated conduit T-shaped tee joint is a professional solution for line protection and system diversion. It features a sturdy T-shaped structure and a sophisticated connection design, with three connection ports, providing reliable branching, sealing protection, and mechanical fixation for cables and conduit. Its excellent environmental adaptability and protection capabilities make it widely used in industrial automation equipment, transportation vehicles (automobiles, rail transit), energy and communications equipment, and all other fields requiring professional cable protection and management.

I. Core Parameters and Performance Features

Material and Craftsmanship: The main body is made of eco-friendly PA66 nylon, which combines excellent mechanical strength, corrosion resistance, and electrical insulation, ensuring a durable product that withstands compression and tensile stress, adapting to a variety of complex environments.
Sealed protection: Excellent waterproof and dust-proof capabilities effectively protect internal cables from external environmental damage.
Environmental Adaptability: Excellent chemical corrosion resistance (salt, solvent, and oil resistance), ensuring stable operation in a variety of harsh industrial environments.
Wide Temperature Range: High-quality materials ensure stable performance in extreme temperatures ranging from -40°C to +125°C, offering both cold and high temperature resistance.

II. Mainstream Specifications and Customization

The product offers a variety of interface sizes and is compatible with all types of metric and German bellows.
Note: Custom sizes, colors, and performance (such as higher temperature resistance) are available. Please contact the seller to confirm specific specifications.

The corrugated conduit elbow offers an exceptional combination of protection and convenience. Its integrated structure (the elbow body and sealing ring work together) and sophisticated thread design provide a reliable waterproof seal and secure fixation between the cable and the corrugated conduit. It also boasts high protection and flame retardancy, making it widely used in machinery, electrical control cabinets, outdoor equipment, and other applications requiring high waterproofing, dust-proofing, and safety. The following describes its core parameters, performance characteristics, specifications, and models:

Core Parameters and Performance Characteristics

Material and Craftsmanship

The main body is made of environmentally friendly PA66 nylon, which combines excellent mechanical strength, corrosion resistance, and electrical insulation, making it suitable for a variety of complex environments.

Full Protection Certification:

Protection Rating: Achieves IP68 protection, completely preventing dust ingress and capable of withstanding long-term submersion in water, providing the highest level of waterproof and dustproof protection.
Fireproof Certification: V0 flame retardant certification ensures effective flame retardancy in open flame environments, ensuring the safety of equipment and personnel. Wide Temperature Range: High-quality materials ensure stable performance in extreme temperatures ranging from -40°C to +125°C, offering resistance to cold, frost, and high temperatures.
Excellent Environmental Adaptability: Excellent resistance to high acids, alkalis, chemicals, and oils, enabling stable operation in a variety of harsh industrial environments.

II. Mainstream Specifications

Product interface threads are primarily available in M (metric) and PG (German).
Note: Custom sizes, colors, and temperature ranges (such as high-temperature rubber seals) are available. Please contact the dealer to confirm specific specifications.

Application: Designed for securing cables and corrugated conduits while providing waterproof protection. Suitable for harsh environments such as machinery, electrical installations, and outdoor environments where exposure to moisture, low and high temperatures, oil, and contaminants is possible, or where flame retardancy and insulation are required.

Corrugated Conduit Double Fixed Connector is a professional solution for protection and efficient cabling. Its symmetrical dual-interface design (the main body and sealing component work together) and precise thread structure provide a secure locking and reliable waterproof seal for two bellows or a cable and bellows combination. Combining high protection, flame retardant, and environmental adaptability, it's specifically designed for applications requiring dual pipe fixing in machinery, electrical control cabinets, outdoor equipment, and other applications with stringent requirements for waterproofing, dust-proofing, and safety. The following describes its core parameters, performance features, and specifications:

Core Parameters and Performance Features

Material and Craftsmanship

The main body is made of environmentally friendly PA66 nylon, offering excellent mechanical strength, corrosion resistance, and electrical insulation, suitable for complex industrial environments.

Fully Certified

Protection Rating: IP66/IP68 Available
IP66: Completely dust-proof and resistant to high-pressure water jets
IP68 (Optional): Completely dust-proof and resistant to long-term submersion in water
Flammability Rating: V1 certified, ensuring effective flame retardancy in open flame environments, ensuring equipment and personnel safety. Extreme Environment Adaptability
Temperature Range: -40°C to +125°C
Cold-resistant, frost-resistant, and heat-resistant, ensuring stable performance in extreme operating conditions.
Chemical Resistance: Resistant to high acids, alkalis, oils, and chemical solvents, making it suitable for harsh environments such as the chemical industry and marine applications.

II. Mainstream Specifications

1. Thread Type: PG, M
2. Customization:
Non-standard sizes and colors are available; upgradeable high-temperature rubber seals (-60°C to 200°C) are available. Please contact the manufacturer to confirm specifications for special operating conditions.

Application: Designed to simultaneously secure two corrugated conduits and provide reliable waterproof protection. Suitable for harsh environments such as machinery, electrical installations, and outdoor environments where exposure to moisture, low and high temperatures, oil, dust, or flame retardancy and insulation are required.

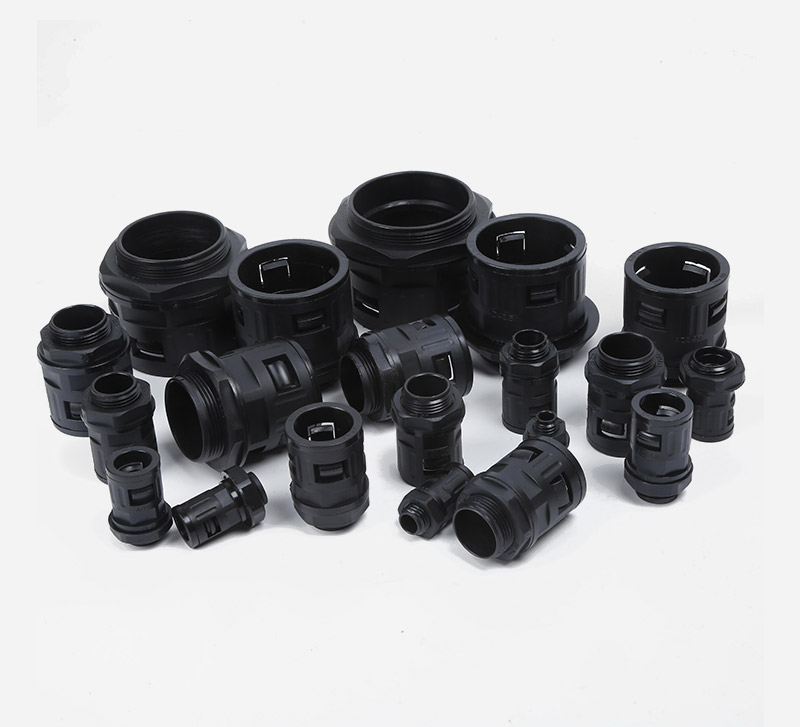

Corrugated Pipe Straight Connector usually have a simple and effective structural design, and one end can be directly inserted into the bellows to achieve a tight connection. Adopting the direct plug-in connection method, the corrugated pipe can be quickly inserted and the operation is convenient and fast. This connection method does not require complicated tool assistance and is very practical in some pipeline systems that require quick installation or disassembly. For example, when building temporary pipelines for hydraulic systems and pneumatic systems or repairing equipment, the connection or separation of bellows from other components can be quickly completed. The connection of the straight plug is relatively tight, which ensures that it will not loosen or leak easily when the pipeline transmits media. Whether it is transmitting hydraulic oil, compressed air, water or other chemical media, it can maintain a stable connection state.

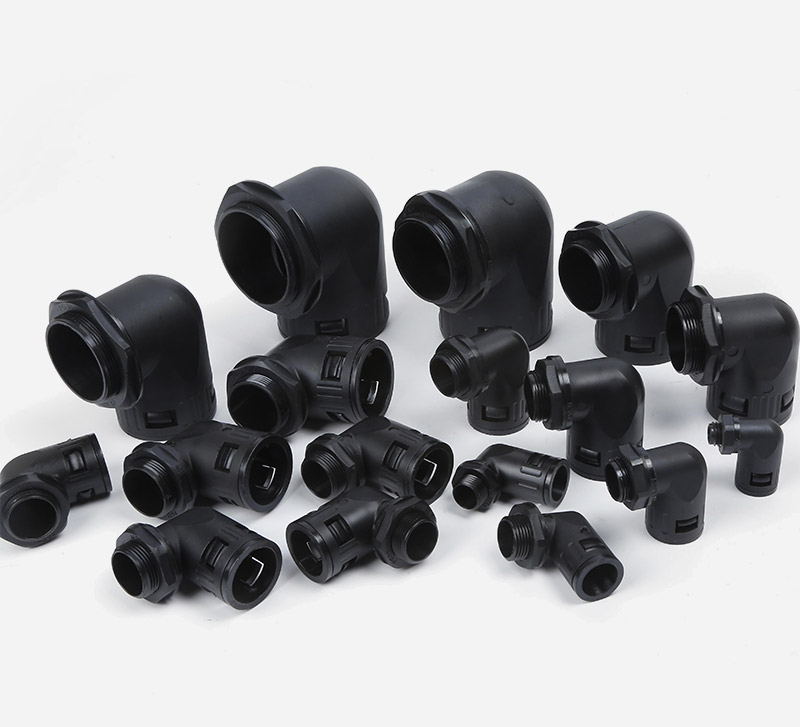

The 90 Degree Bellows Pipe Connectors is a special pipe connection that is mainly used to change the direction of the pipe, especially when the pipe is required to make a right-angle turn. This type of joint usually consists of a corrugated pipe and a right-angle elbow. The elastic properties of the corrugated pipe enable it to adapt to the thermal expansion, contraction and vibration of the pipe to a certain extent, thus protecting the entire pipe system from damage.

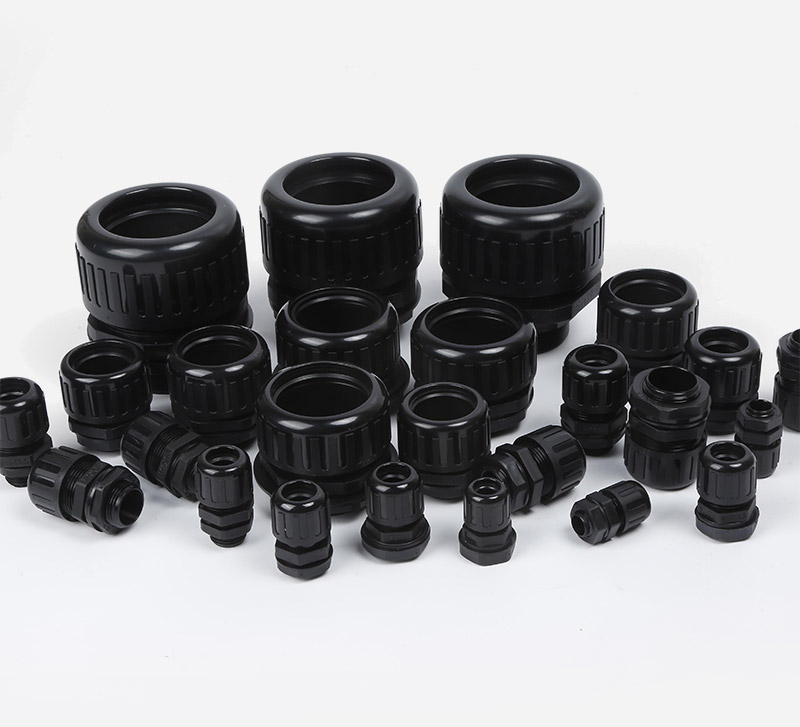

The PE Bellows Pipe Gland is a component used to connect bellows and equipment. Its main feature is good waterproof performance. This joint usually consists of two main parts: Part A.C.F and Part D. The A.C.F part is made of nylon, a material with high flame retardancy and heat resistance. Part D is made of weather-resistant rubber, which has good weather resistance, acid and alkali resistance, and chemical corrosion resistance.

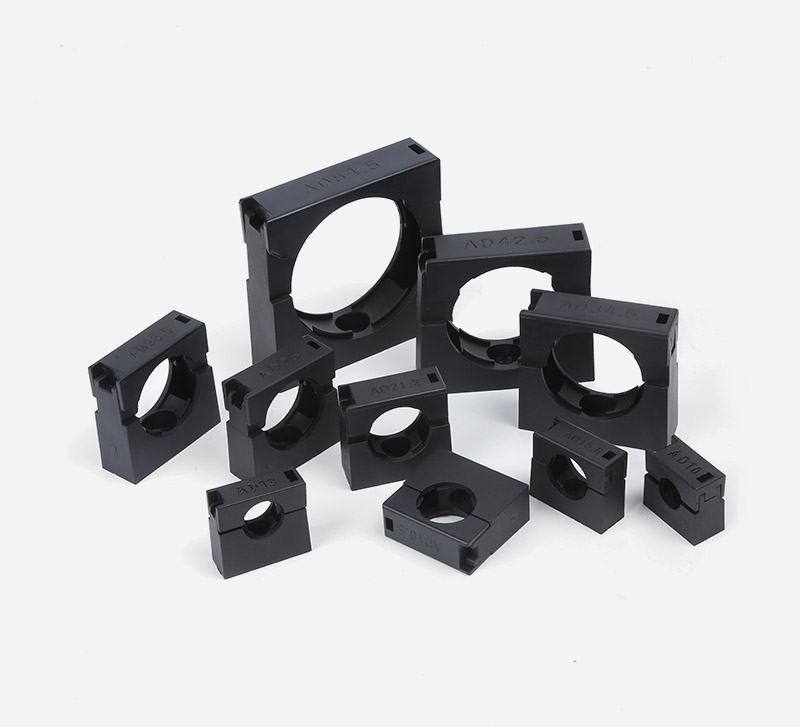

The bellows fixing bracket is a device specially used to fix the bellows. It can ensure that the bellows remains stable during use and avoid damage caused by vibration or other factors. Below is a detailed description of the bellows mounting bracket. The structural design of the bellows fixing bracket is usually symmetrical. The semicircular channels of the upper module and the lower module are arranged correspondingly up and down to form a circular channel. Such a design can not only effectively fix the bellows, but also allow it to rotate freely in the axial direction, saving space while ensuring safety and tidiness.
