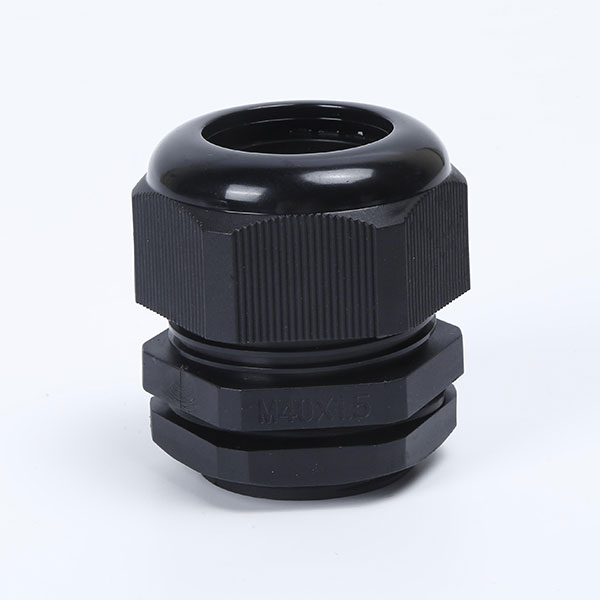

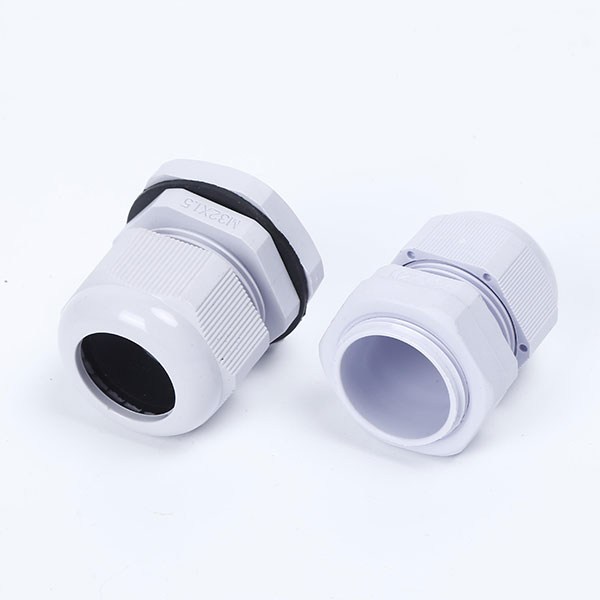

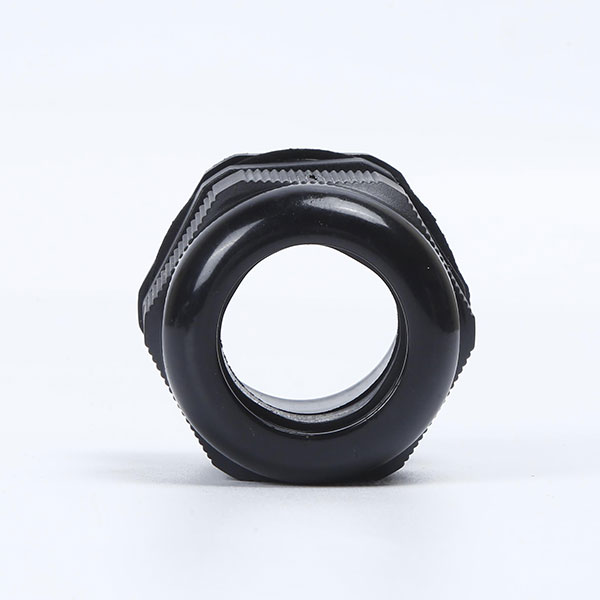

M Thread Nylon Cable Glands

Thread Specification: Metric Thread

Size: M10~M63

Cable Range: 2~44mm

Certification: CE,IP68, SGS

Color: Black, White and Other Customized Colors.

REQUEST AN INQUIRY

DESCRIPTION
DETAILS
PARAMETERS
RELATED PRODUCT
RELATED NEWS

DESCRIPTION

M Thread Nylon Cable Glands: excellent insulation, IP68 rated, resistant to dust, water, extreme temps & high voltages. Easy to install, suitable for cable connections in various industries.

Special design of clamping claws and clamping ring, wide range of clamping cable, strong tensile strength, waterproof, dustproof, salt-resistant, weak acid, alcohol, oil, grease and general solvents.

Material: The main part is made of nylon, and the clamping part as well as seals and O-rings are made of nitrile rubber (NBR).

Protection Degree: Specifically, within this cable range, utilizing an O-ring helps ensure the tightness of the head, allowing the assembly to meet the IP68 protection level and resist pressures of up to 10 bar.

Operating temperature: Static -40℃~100℃ or instantly heat resistance up to 120℃.Dynamic -20℃~80℃ or Instant heat resistance to 100℃

Thread length: The short thin thread is fit for holes in thin board openings or devices with internal thread, while the long thread is available fro thick board. OEM service such as thread extension support.

Features: Special clamping claw and clamping ring design, wide clamping range of cables, extremely strong tensile strength, waterproof, dustproof, salt-resistant, weak acid, alcohol, oil, grease and general solvents.

Function: Nylon Cable Joint is cable supporting products, connector cable can be locked, the other end of the device can access the device through the box body, also can choose thread access according to the entry and outlet of the internal thread electrical equipment.

More options: Support customization. Welcome to inquire when ordering.

DETAILS

PARAMETER

M Thread	Model	Cable Range	Nut height	Outer Diameter of Nut	Thread Diameter	Thread Length	Wrench Diameter	Nut Diagonal	Customized Thick Leather Ring (D)
	M8 1.25	2-5.5	11.9mm	12.2mm	8mm	7.5mm	13mm	14.6mm
	M10*1.5	2-6	12.3mm	12.8mm	10mm	8mm	15mm	17mm
	M12*1.5	3-6.5	14.8mm	15.8mm	12mm	8mm	18mm	19.5mm	2-5
		4-8★	15.8mm	18.8mm	12mm	8mm	18mm	19.5mm	3-6.5
	M16*1.5	4-8	15.8mm	18.8mm	16mm	8mm	21mm	23.3mm	2-6
		5-10★	17.3mm	21.7mm	16mm	8mm	21mm	23.3mm	4-8
	M18*1.5	5-10	17.3mm	21.7mm	18mm	8mm	22mm	26.3mm	3-7
	M20*1.5	6-12	18.6mm	23.5mm	20mm	9mm	27mm	29.3mm	5-9
		7-14★	18.6mm	26.1mm	20mm	10mm	27mm	29.3mm	6-12
	M22*1.5	10-14	18.6mm	26.1mm	22mm	10mm	27mm	31.7mm	7-12
	M24*1.5	12-16	20mm	28.6mm	24mm	10mm	27mm	33.4mm	10-13
	M25*1.5	9-16	20mm	28.6mm	25mm	10mm	33mm	39.2mm	10-13
		13-18★	21.7mm	31.6mm	25mm	10mm	33mm	39.2mm	9-16
	M27*1.5	18-21	21.7mm	31.6mm	27mm	10mm	33mm	36.5mm	9-16
	M30*1.5	16-21	21.7mm	34.7mm	30mm	11mm	35mm	40mm	13-18
	M32*1.5	16-21	21.7mm	34.7mm	32mm	11mm	35mm	42.1mm	13-18
		18-25★	25.6mm	41.6mm	32mm	11mm	35mm	42.1mm	16-21
	M36*1.5	18-25	25.6mm	41.6mm	36mm	15mm	42mm	48.3mm	13-20
	M40*1.5	22-32	30mm	52.8mm	40mm	15mm	52mm	54mm	20-26
	M50*1.5	32-38	30.5mm	61.1mm	50mm	15mm	60mm	66.8mm	25-31
	M63*1.5	37-44	31.9mm	67.3mm	63mm	15mm	64mm	80.8mm	29-35
