Explosion Proof Armored Double Sealing Cable Gland

Material: Brass plated nickel, SS304, SS316

Explosion - proof class: Ex db IIC Gb; Exeb IIC Gb; Extb IIIC Db

Seal: Silicone

Protection level: IP66

Operating temperature: - 60℃~+100℃

Applicable environment: oil exploitation, refining, chemical industry, military industry and other hazardous areas; Zone 1,2 of explosive gas environments, Zones 20,21,22 of combustible dust environments, and IIA,IIB,IIC explosive gas environments; also suitable for armoured cables and cable wiring, as well as tight sealing of cable clips with wire, braided or steel tape armouring.

Implementation standards: GB3836.1, GB3836.3, GB12476.1, 12476.5,EC60079 - 0, IEC60079 - 7, IEC61241 - 0, IEC61241 - 1EN60079 - 0, EN60079 - 7,EN61241 - 0, 61241 - 1

REQUEST AN INQUIRY

Explosion Proof Armored Double Sealing Cable Gland

DESCRIPTION
DETAILS
PARAMETERS
RELATED PRODUCT
RELATED NEWS

DESCRIPTION

The explosion proof armored double sealing cable gland represents the perfect combination of ruggedness and reliability. Its multi-clamp design provide unparalleled retention and sealing for armored cables. Its explosion-proof performance makes it widely used in hazardous locations such as oil extraction, refining, chemical processing, and military applications. The following is an introduction to core parameters, performance features, specifications, pricing, and purchasing information:

I. Core Parameters and Performance Features

Material and Craftsmanship

The main body is available in nickel-plated brass, 304 stainless steel, and 316 stainless steel, offering excellent corrosion resistance, mechanical strength, and durability, suitable for a wide range of chemical and physical environments.
Fully Explosion-Proof Certifications: Explosion-proof ratings meet Ex db IIC Gb; Ex eb IIC Gb; and Ex tb IIIC Db, making it suitable for most explosive gas and dust environments, ensuring safe operation in hazardous areas.
Waterproof Sealing: Achieves IP66 protection, completely protecting against dust ingress and intrusion from strong waves or powerful water jets.
Wide Temperature Range: Silicone seals ensure stable performance in extreme temperatures ranging from -60°C to +100°C.
Adaptability: Perfectly matches and clamps a variety of armored cables, including wire armor, braid armor, and steel tape armor, and is compatible with various interface standards, including metric M-thread and US NPT.

II. Main Specifications

Product specifications are mainly divided into M-type, NPT-type, and G-type.
Note: Some models can be customized; please contact the seller to confirm specific specifications.

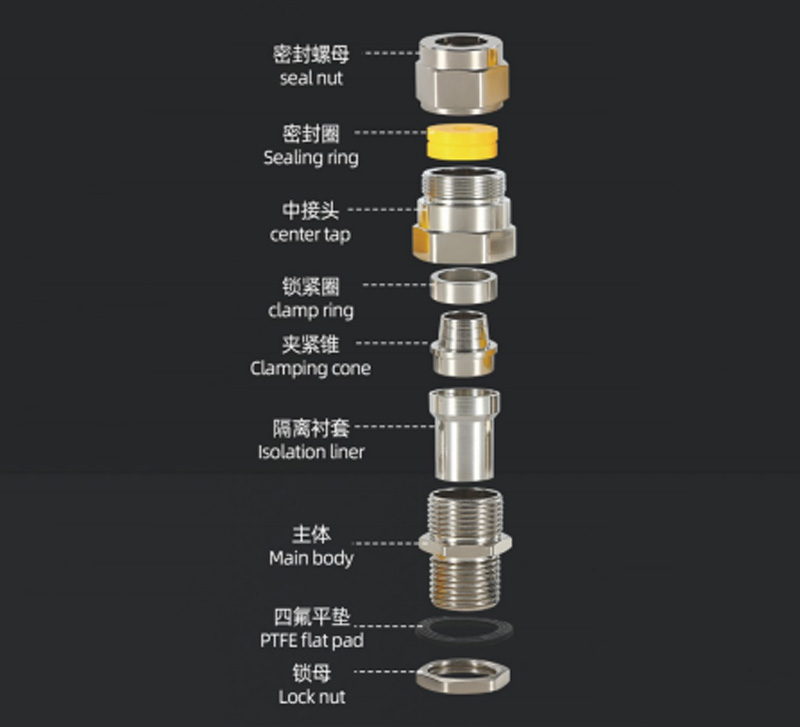

DETAILS

PARAMETER

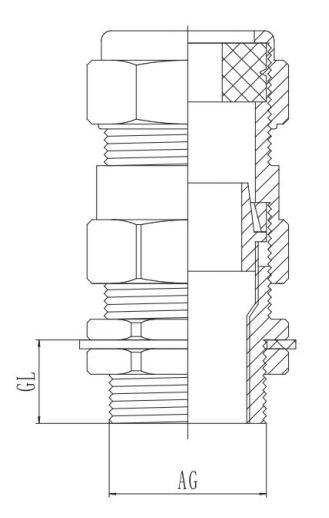

Metric Thread	Product Number	Incoming Range（mm)	Maximum Outlet MO(mm)	Length of Thread GL (mm)	Thread O.D.AG (mm)	Spanner Size (mm)
M16*1.5	QG-BDM-VIIM16	5-16	10	15	16	24
M20*1.5	QG-BDM-VIIM20	5-16	10	15	20	24
M20*1.5D	QG-BDM-VIIM20D	5-20	15	15	20	30
M25*1.5	QG-BDM-VIIM25	5-20	15	15	25	30
M25*1.5D	QG-BDM-VIIM25D	8-26	20	15	25	38
M32*1.5	QG-BDM-VIIM32	8-26	20	17	32	38
M32*1.5D	QG-BDM-VIIM32D	15-33	26	17	32	45
M40*1.5	QG-BDM-VIIM40-33	15-33	26	17	40	45
M40*1.5D	QG-BDM-VIIM40D	16-40	33	17	40	55
M50*1.5	QG-BDM-VIIM50	16-40	33	20	50	55
M50*1.5D	QG-BDM-VIIM50D	18-50	41	20	50	68
M63*1.5	QG-BDM-VIIM63	18-50	41	20	63	68
M63*1.5D	QG-BDM-VIIM63D	25-64	53	20	63	82
M75*2	QG-BDM-VIIM75	25-64	53	22	75	82
M88*2	QG-BDM-VIIM88	31-80	75	22	88	98
M100*2	QG-BDM-VIIM100	40-96	83	22	100	110
M115*2	QG-BDM-VIIM115	40-103	90	22	115	125
M130*2	QG-BDM-VIIM130	98-119	100	22	130	140

American Thread	Product Number	Incoming Range（mm)	Maximum Outlet MO(mm)	Length of Thread GL (mm)	Thread O.D.AG (mm)	Spanner Size (mm)
NPT3/8	QG-BDM-VII NPT3/8	5-16	10	15	17.05	24
NPT1/2	QG-BDM-VII NPT1/2	5-16	10	15	21.22	24
NPT1/2D	QG-BDM-VII NPT1/2D	5-20	15	15	21.22	30
NPT3/4	QG-BDM-VII NPT3/4	5-20	15	15	26.56	30
NPT3/4D	QG-BDM-VII NPT3/4D	8-26	20	15	26.56	38
NPT1	QG-BDM-VII NPT1	8-26	20	17	33.28	38
NPT1D	QG-BDM-VII NPT1D	15-33	26	17	33.28	45
NPT1-1/4	QG-BDM-VII NPT1 1/4	15-33	26	17	41.98	45
NPT1-1/4D	QG-BDM-VII NPT1 1/4D	16-40	33	17	41.98	55
NPT1-1/2	QG-BDM-VII NPT1 1/2	16-40	33	20	48.05	55
NPT1-1/2D	QG-BDM-VII NPT1 1/2D	18-50	41	20	48.05	68
NPT2	QG-BDM-VII NPT2	18-50	41	20	60.09	68
NPT2D	QG-BDM-VII NPT2D	25-64	53	20	60.09	82
NPT2-1/2	QG-BDM-VII NPT2 1/2	25-64	53	22	72.69	82
NPT3	QG-BDM-VII NPT3	31-80	75	22	88.60	98
NPT4	QG-BDM-VII NPT4	40-103	90	22	113.97	125

Inch Thread	Product Number	Incoming Range（mm)	Maximum Outlet MO(mm)	Length of Thread GL (mm)	Thread O.D.AG (mm)	Spanner Size (mm)
G3/8	QG-BDM-VII G3/8	5-16	10	15	16.66	24
G1/2	QG-BDM-VII G1/2	5-16	10	15	20.95	24
G1/2D	QG-BDM-VII G1/2D	5-20	15	15	20.95	30
G3/4	QG-BDM-VII G3/4	5-20	15	15	26.44	30
G3/4D	QG-BDM-VII G3/4D	8-26	20	15	26.44	38
G1	QG-BDM-VII G1	8-26	20	17	33.25	38
G1D	QG-BDM-VII G1D	15-33	26	17	33.25	45
G1-1/4	QG-BDM-VII G1 1/4	15-33	26	17	41.91	45
G1-1/4D	QG-BDM-VII G1 1/4D	16-40	33	17	41.91	55
G1-1/2	QG-BDM-VII G1 1/2	16-40	33	20	47.80	55
G1-1/2D	QG-BDM-VII G1 1/2D	18-50	41	20	47.80	68
G2	QG-BDM-VII G2	18-50	41	20	59.61	68
G2D	QG-BDM-VII G2D	25-64	53	20	59.61	82
G2-1/2	QG-BDM-VII G2 1/2	25-64	53	22	75.18	82
G3	QG-BDM-VII G3	31-80	75	22	87.88	98
G4	QG-BDM-VII G4	40-103	90	22	113.03	125
