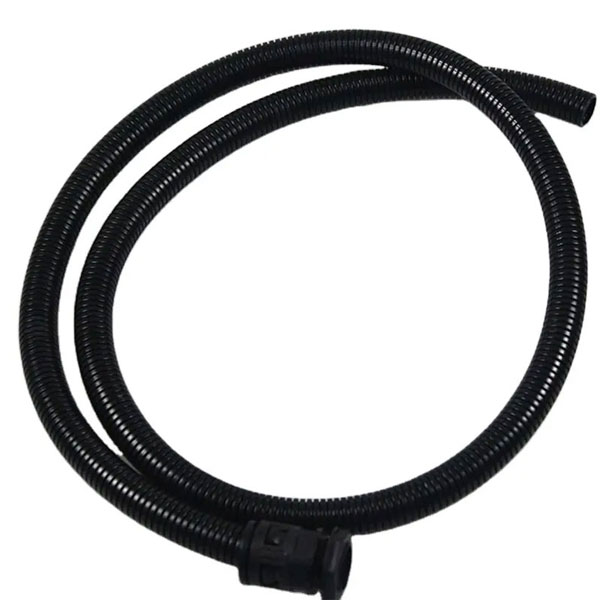

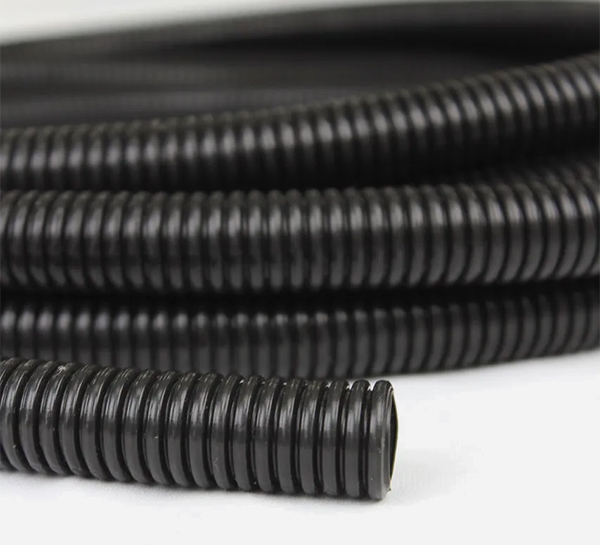

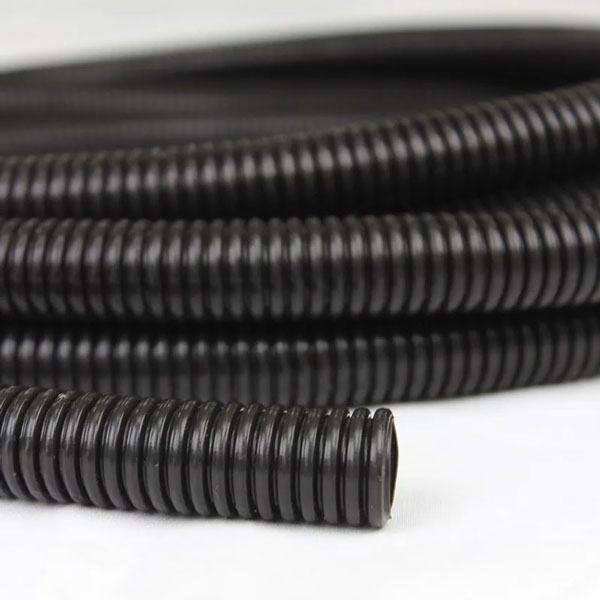

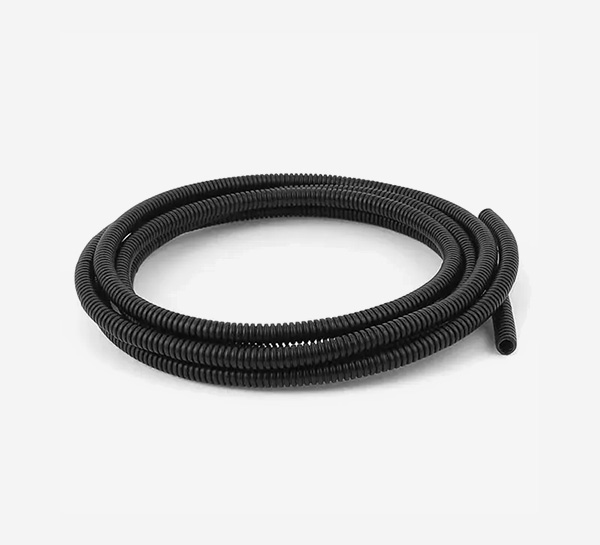

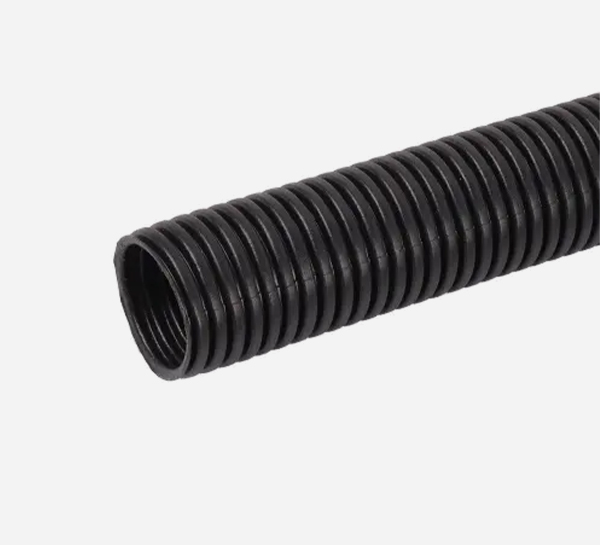

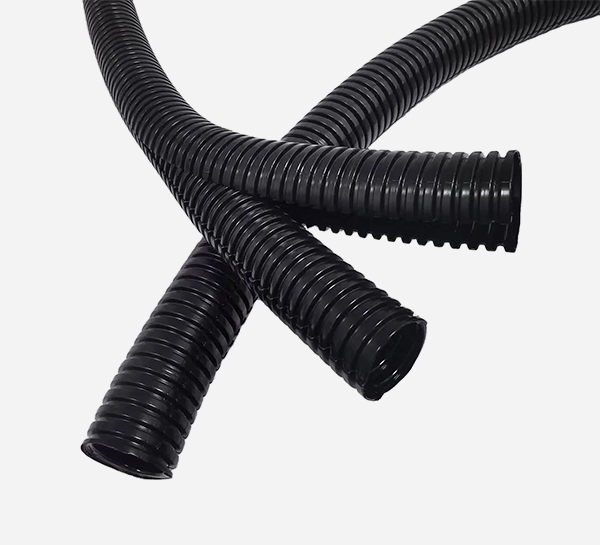

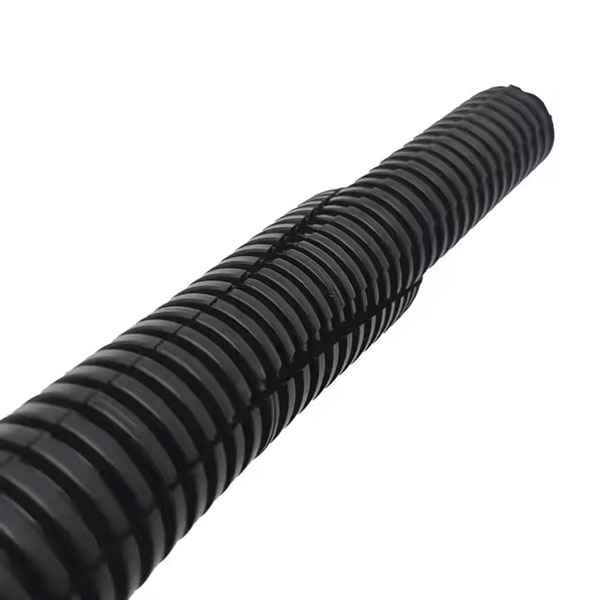

Flexible Nylon Bellows Hose

Material: PE、PP、PA

Size: 7~54.5mm

REQUEST AN INQUIRY

DESCRIPTION
DETAILS
PARAMETERS
RELATED PRODUCT
RELATED NEWS

DESCRIPTION

Flexible Nylon Bellows Hose is elastic and can produce displacement under pressure, axial force, lateral force or bending moment. It is a cylindrical thin-walled corrugated shell with multiple transverse corrugations. The bellows wall is thinner and has higher sensitivity. The measurement range is from tens of Pascals to tens of MPa. Its open end is fixed, the sealed end is in a free state, and an auxiliary coil spring or reed is used to increase elasticity.

Feature: Due to its corrugated structure, it can effectively withstand soil pressure and external impacts, showing superior performance even under harsh environmental conditions. Its good flexibility allows plastic corrugated pipes to adapt to different terrain changes, making installation easier and more flexible. Chemical properties, It has good corrosion resistance and remains stable against various acids, alkalis, salts and other chemical substances, so it is particularly popular in chemical discharge and sewage treatment.Environmental protection and energy saving. As a new type of green pipe, it not only consumes little energy during production, but can also be recycled and reused, reducing resource consumption and meeting the current society's requirements for environmental protection and energy conservation.

Precautions for the installation of plastic corrugated pipes: Before installation, ensure that the pipe trench is smooth and free of sharp stones and other hard objects. When laying pipes, pay attention to maintaining support at the bottom of the pipe and leaving appropriate bending allowance. When connecting, hot melt or electrofusion connection technology can be used to ensure the sealing and tensile strength of the interface.

DETAILS

PARAMETER

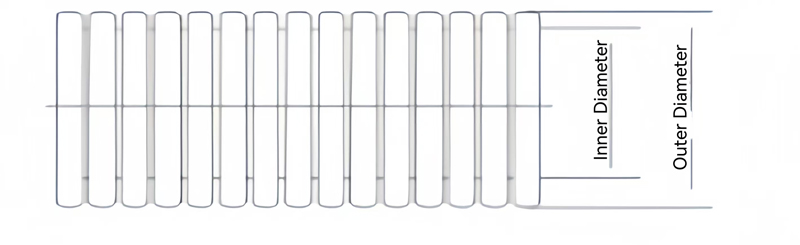

Model PA/PP/PE	Spocification (AD)	Internal and Outside diameter (mm)	Bendingradius(mm)	Package (mm)
PE-7	AD7	4.5×7.0	16	200
PE-10	AD10	7.0×10	16	100
PE-13	AD13	10×13	20	100
PE-15.8	AD15.8	12×15.8	30	100
PE-18.5	AD18.5	14.3×18.5	40	100
PE-21.2	AD21.2	17×21.2	45	100
PE-25	AD25	21×25	45	100
PE-28.5	AD28.5	23×28.5	50	50
PE-34.5	AD34.5	29×34.5	60	50
PE-42.5	AD42.5	36×42.5	70	50
PE-54.5	AD54.5	48×54.5	90	25
