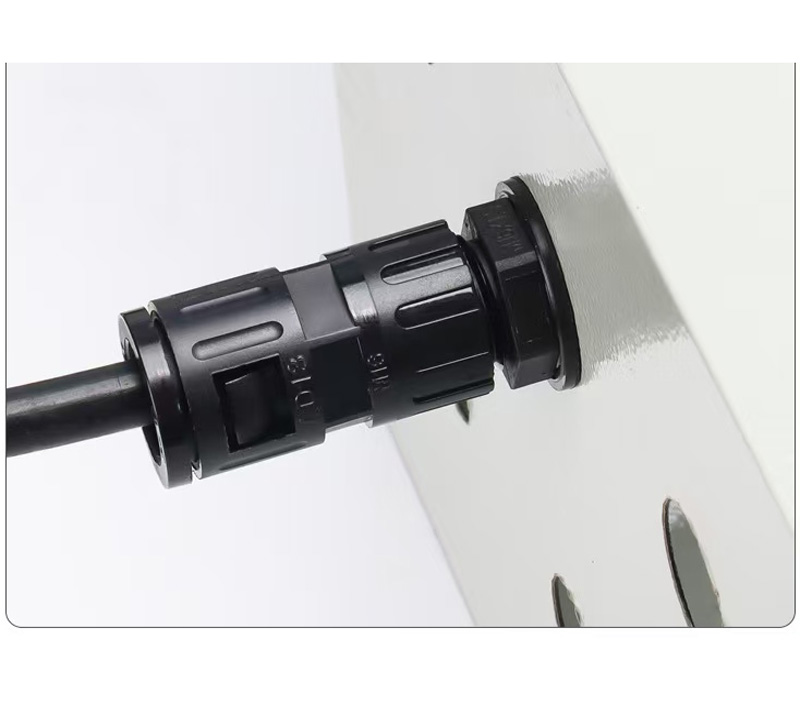

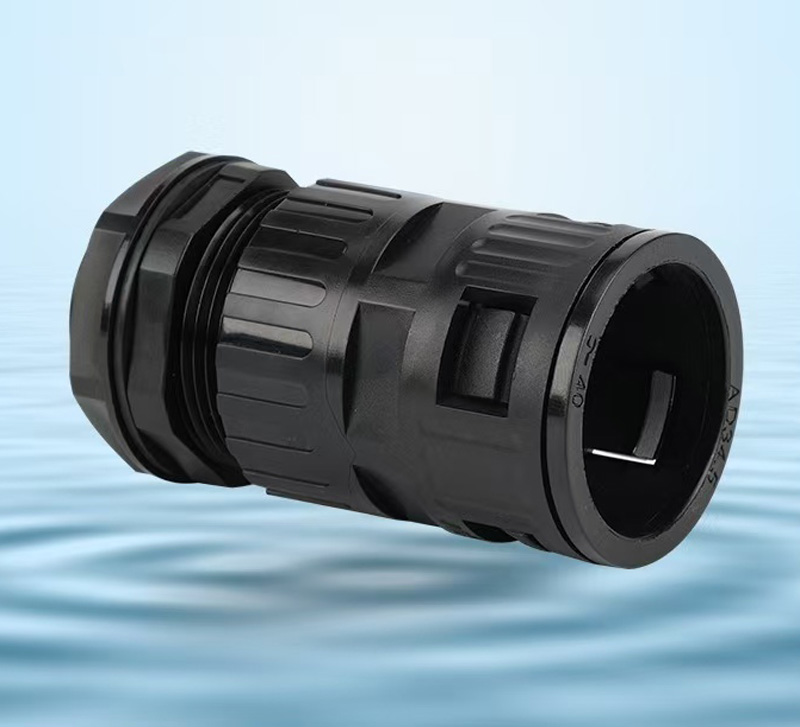

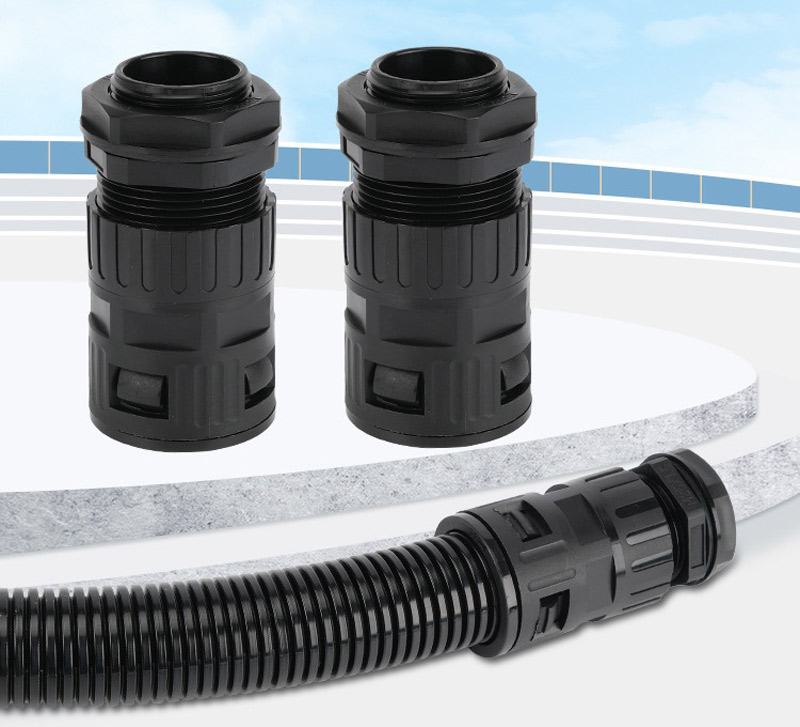

Corrugated Conduit Double Fixed Connector

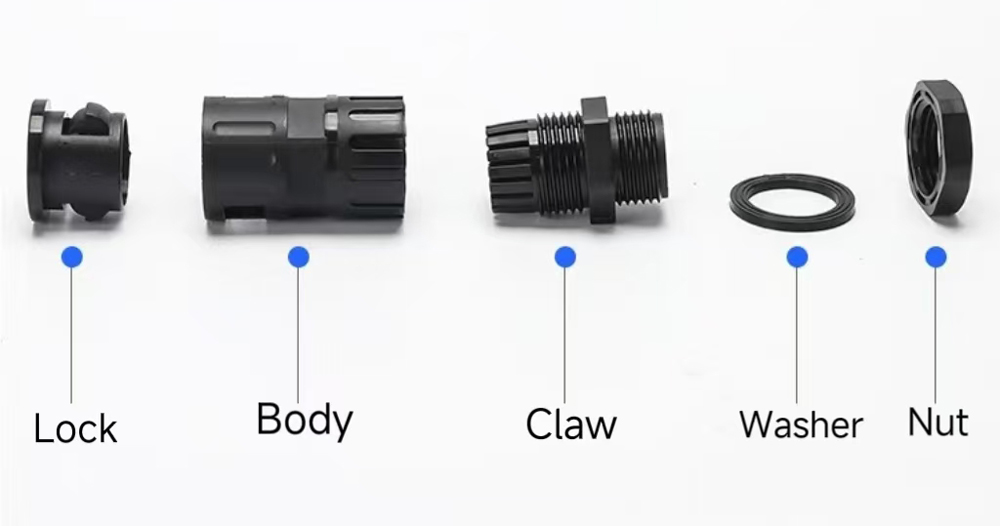

The corrugated conduit elbow offers an exceptional combination of protection and convenience. Its integrated structure (the elbow body and sealing ring work together) and sophisticated thread design provide a reliable waterproof seal and secure fixation between the cable and the corrugated conduit. It also boasts high protection and flame retardancy, making it widely used in machinery, electrical control cabinets, outdoor equipment, and other applications requiring high waterproofing, dust-proofing, and safety. The following describes its core parameters, performance characteristics, specifications, and models:

Core Parameters and Performance Characteristics

Material and Craftsmanship

The main body is made of environmentally friendly PA66 nylon, which combines excellent mechanical strength, corrosion resistance, and electrical insulation, making it suitable for a variety of complex environments.

Full Protection Certification:

Protection Rating: Achieves IP68 protection, completely preventing dust ingress and capable of withstanding long-term submersion in water, providing the highest level of waterproof and dustproof protection.
Fireproof Certification: V0 flame retardant certification ensures effective flame retardancy in open flame environments, ensuring the safety of equipment and personnel. Wide Temperature Range: High-quality materials ensure stable performance in extreme temperatures ranging from -40°C to +125°C, offering resistance to cold, frost, and high temperatures.
Excellent Environmental Adaptability: Excellent resistance to high acids, alkalis, chemicals, and oils, enabling stable operation in a variety of harsh industrial environments.

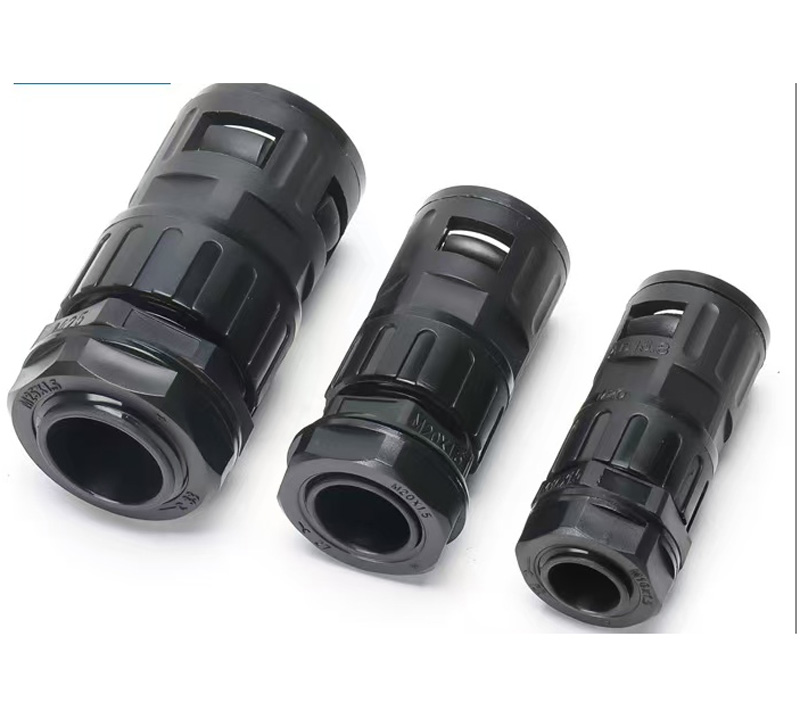

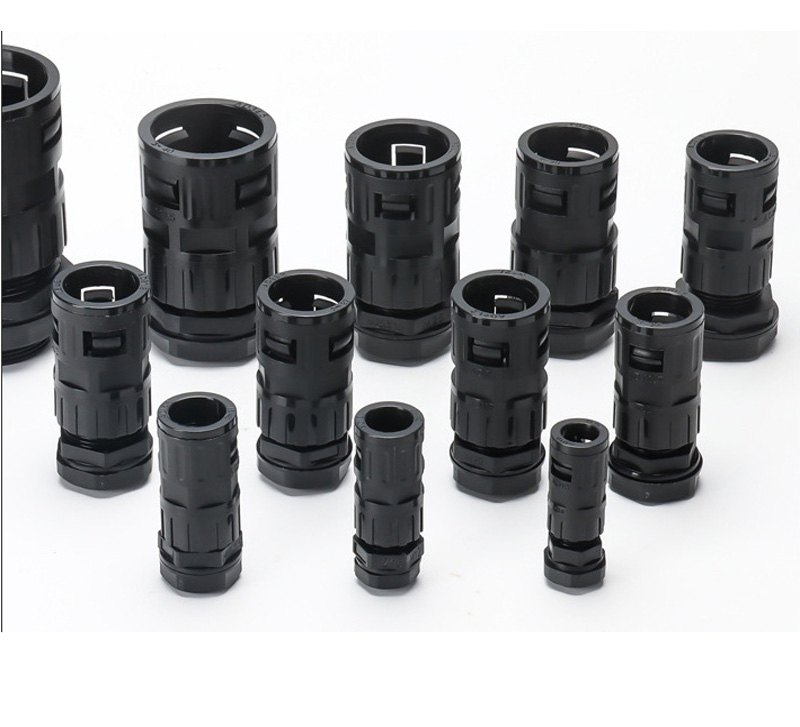

II. Mainstream Specifications

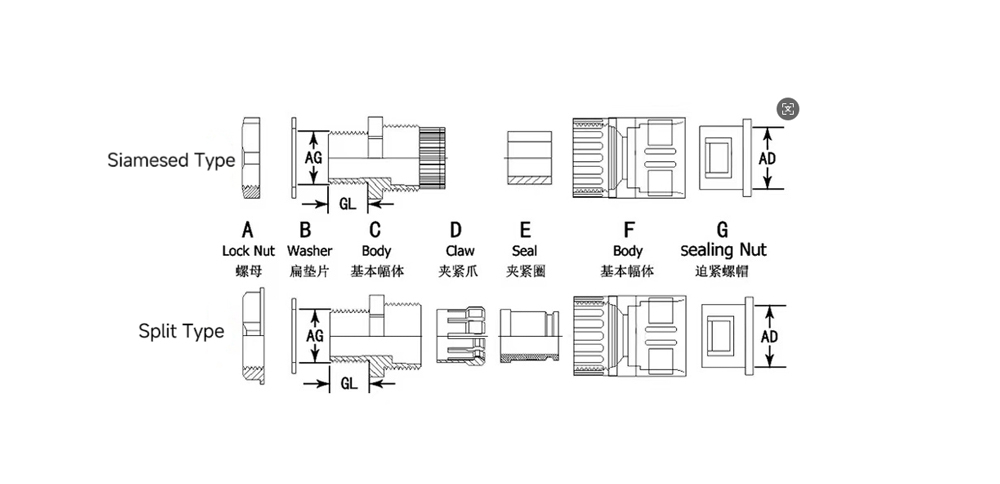

Product interface threads are primarily available in M (metric) and PG (German).
Note: Custom sizes, colors, and temperature ranges (such as high-temperature rubber seals) are available. Please contact the dealer to confirm specific specifications.

Corrugated Pipe Straight Connector usually have a simple and effective structural design, and one end can be directly inserted into the bellows to achieve a tight connection. Adopting the direct plug-in connection method, the corrugated pipe can be quickly inserted and the operation is convenient and fast. This connection method does not require complicated tool assistance and is very practical in some pipeline systems that require quick installation or disassembly. For example, when building temporary pipelines for hydraulic systems and pneumatic systems or repairing equipment, the connection or separation of bellows from other components can be quickly completed. The connection of the straight plug is relatively tight, which ensures that it will not loosen or leak easily when the pipeline transmits media. Whether it is transmitting hydraulic oil, compressed air, water or other chemical media, it can maintain a stable connection state.

The 90 Degree Bellows Pipe Connectors is a special pipe connection that is mainly used to change the direction of the pipe, especially when the pipe is required to make a right-angle turn. This type of joint usually consists of a corrugated pipe and a right-angle elbow. The elastic properties of the corrugated pipe enable it to adapt to the thermal expansion, contraction and vibration of the pipe to a certain extent, thus protecting the entire pipe system from damage.
