Metric Thread Standard Liquid Tight Cable Glands

Thread: M Thread

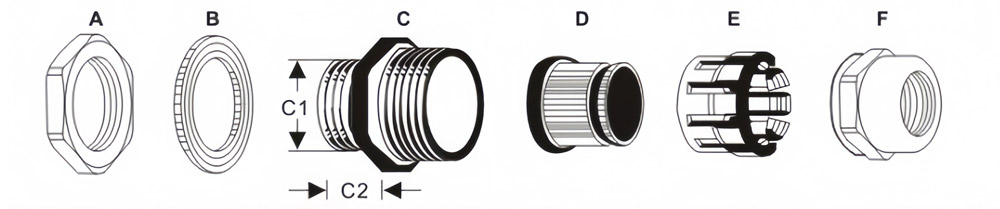

Material: The A.C.F part is made of brass,Part E is made of Nylon. Part B and D is made of weather-resistant rubber partly

Size: M8~M120

Cable Range: 2~84mm

REQUEST AN INQUIRY

DESCRIPTION
DETAILS
PARAMETERS
RELATED PRODUCT
RELATED NEWS

DESCRIPTION

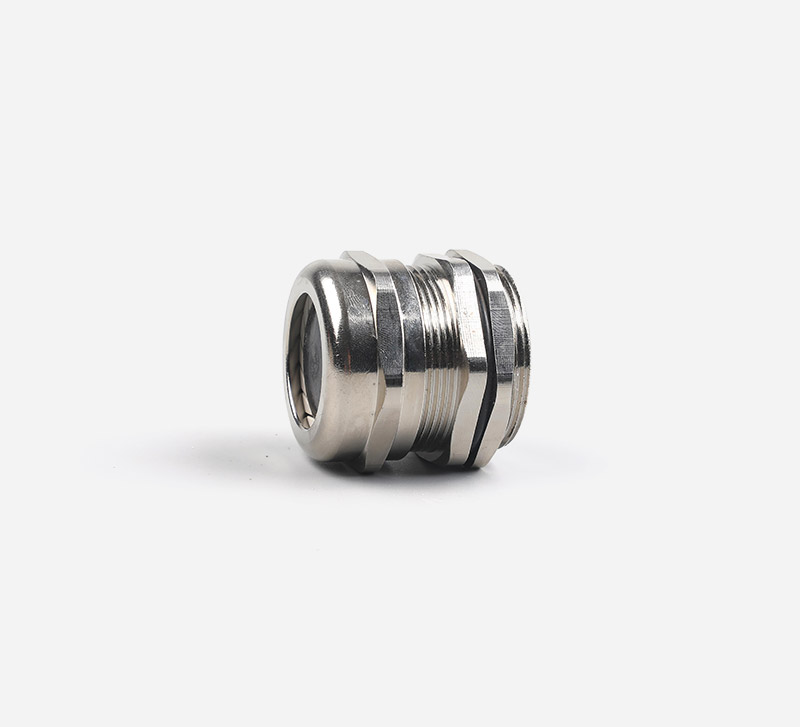

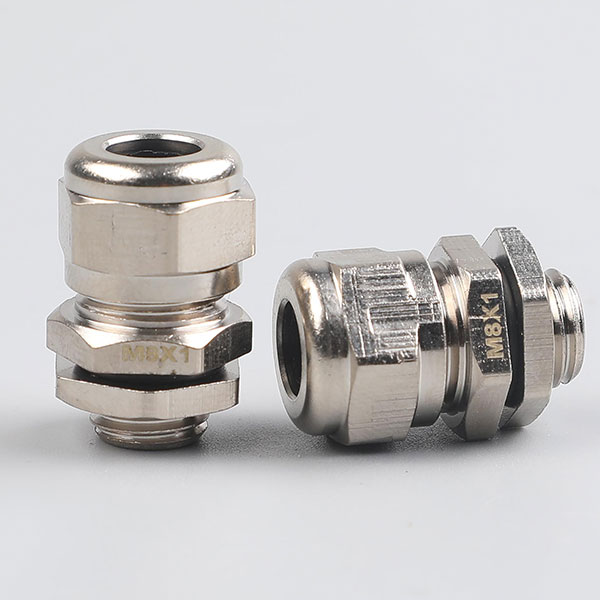

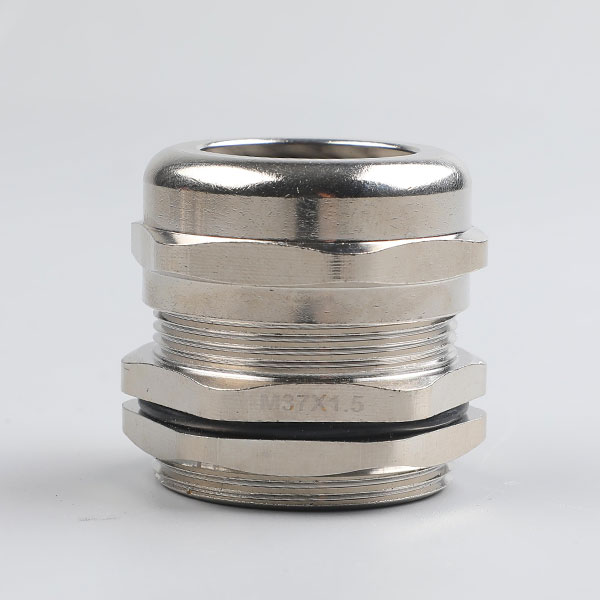

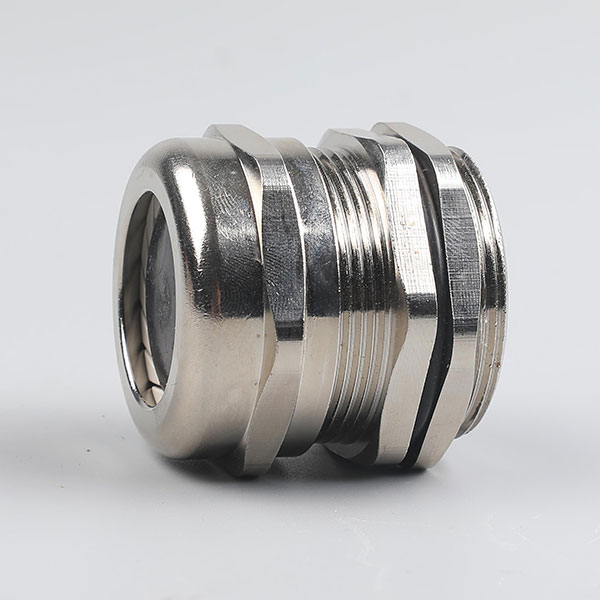

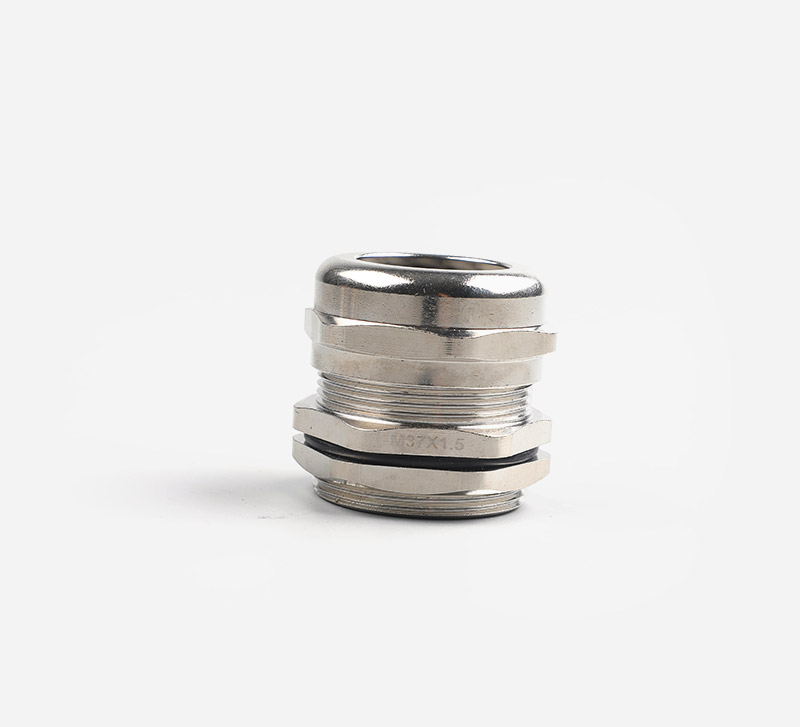

The main body of Metric thread Standard Liquid Tight Cable Glands is brass, which has good conductivity, corrosion resistance and machinability, and is suitable for various complex environments. In some environments with a certain amount of humidity or slightly corrosive substances, the corrosion resistance of brass can ensure the service life of cable joints. The surface is nickel-plated. The nickel layer not only further enhances the corrosion resistance of the joint, but also makes the joint appearance more beautiful and smooth. When used in some equipment or places with high appearance requirements, the nickel-plated joint can improve the overall appearance.

Working Temperature: The working temperature ranges of different products vary. Static -40℃~100℃ or instantly heat resistance up to 120℃. Dynamic -20℃~80℃ or Instant heat resistance to 100℃.

Feature: Special design of clamping and rubber part, large range in clamping cable,ultra-strong stretching resistance,waterproof, dustpoof,and high ability to resist, salt, acid,alkali, alcohol, grease and common slovent.

Application: Mainly suitable for cable protection. During the laying and use of cables, this joint can protect the ends of the cables and prevent the cables from external mechanical damage, moisture erosion, etc. Whether in indoor electrical equipment wiring or outdoor power, communication and other cable laying, brass nickel-plated PG thread cable joints can play an important protective role to ensure the normal use and long-term stable operation of the cable.

DETAILS

PARAMETER

Product Model	Cable Range	Thread diameter (C1)	Thread length (C2)	Wrench diameter A	Combined length H
M8*1.25	2-5.5	8mm	5mm	12mm	12mm
M10*1.5	3-6.5	10mm	6.5mm	14mm	14mm
M12*1.5	3-6.5	12mm	6.5mm	14mm	14mm
M12*1.5	4-8	12mm	8mm	14mm	14mm
M14*1.5	4-8	14mm	8mm	17mm	17mm
M16*1.5	4-8	16mm	8mm	18mm	18mm
M16*1.5	5-10	16mm	8mm	18mm	18mm
M18*1.5	5-10	18mm	8mm	20mm	20mm
M20*1.5	6-12	20mm	8mm	22mm	22mm
M20*1.5	7-14	20mm	8mm	22mm	22mm
M22*1.5	10-14	22mm	8mm	24mm	24mm
M24*1.5	10-14	24mm	9mm	27mm	27mm
M25*1.5	10-14	25mm	9mm	27mm	27mm
	11-16	25mm	9mm	27mm	27mm
	13-18	25mm	9mm	27mm	27mm
M27*1.5	13-18	27mm	9mm	30mm	30mm
M30*1.5	13-18	30mm	9mm	32mm	32mm
M32*1.5	15-22	32mm	10mm	35mm	35mm
M32*1.5	18-25	32mm	10mm	35mm	35mm
M36*1.5	18-25	36mm	10mm	40mm	40mm
M37*1.5	18-25	37mm	10mm	40mm	40mm
M40*1.5	22-32	40mm	11mm	45mm	45mm
M40*1.5	25-33	40mm	11mm	45mm	45mm
M47*1.5	25-33	47mm	11mm	50mm	50mm
M50*1.5	32-38	50mm	13mm	55mm	55mm
M60*1.5	37-44	60mm	14mm	64mm	64mm
M63*1.5	37-44	63mm	14mm	68mm	68mm
M64*2	37-44	64mm	14mm	68mm	68mm
M70*2	42-52	70mm	16mm	78mm	78mm
M72*2	42-52	72mm	16mm	78mm	78mm
M75*2	42-52	75mm	16mm	80mm	80mm
M80*2	55-62	80mm	18mm	88mm	88mm
M88*2	65-70	88mm	18mm	94mm	94mm
M100*2	78-84	100mm	20mm	110mm	110mm
M120*2	78*84	120mm	20mm	130mm	130mm
