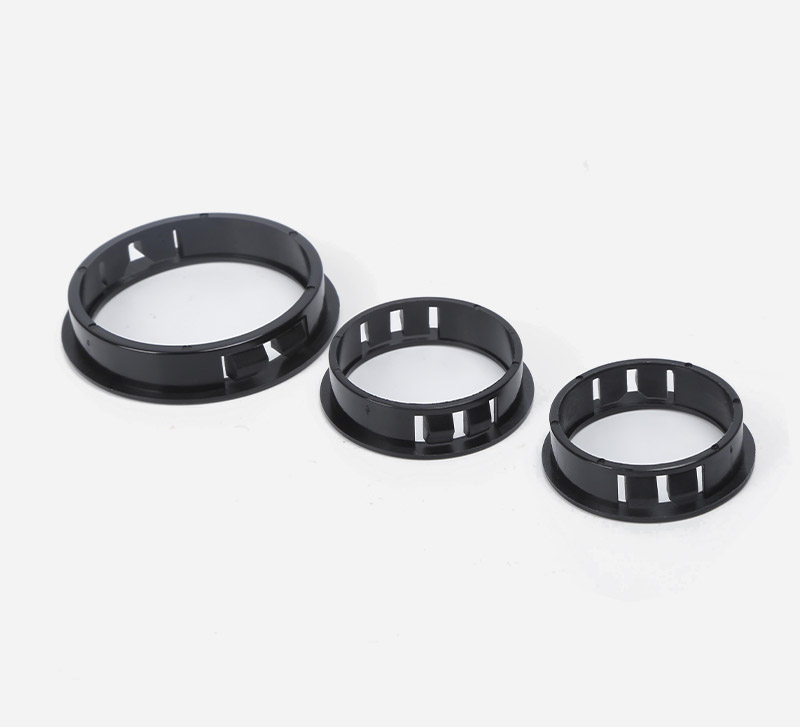

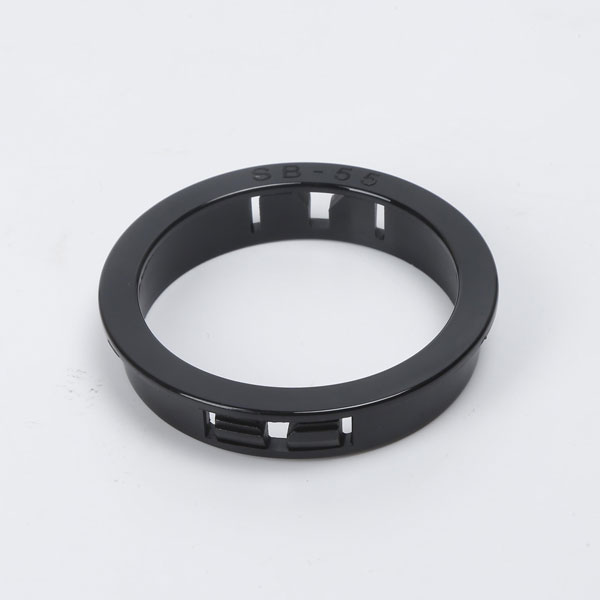

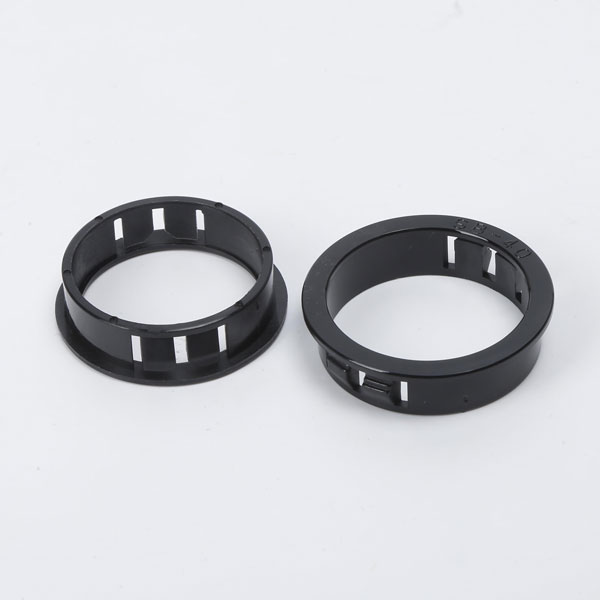

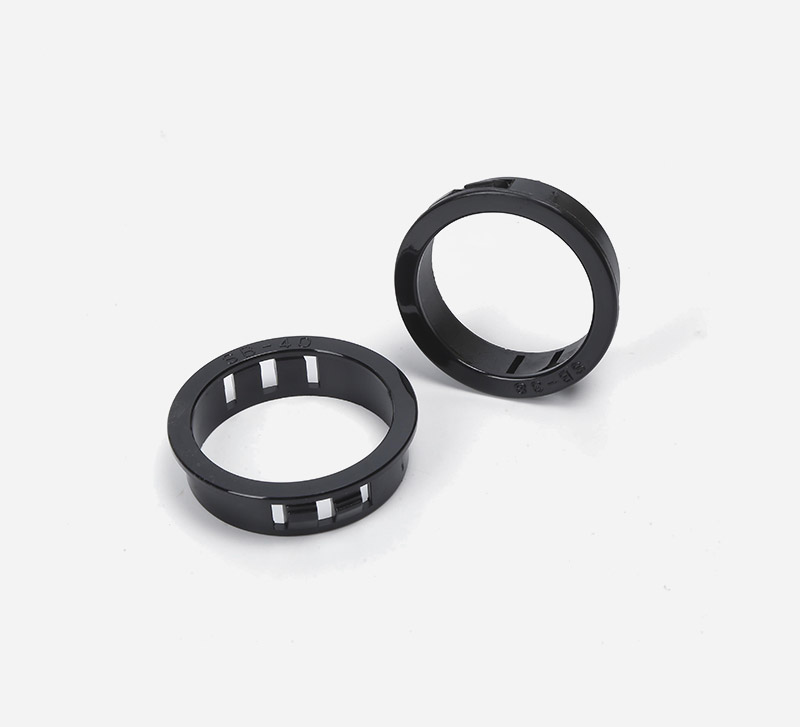

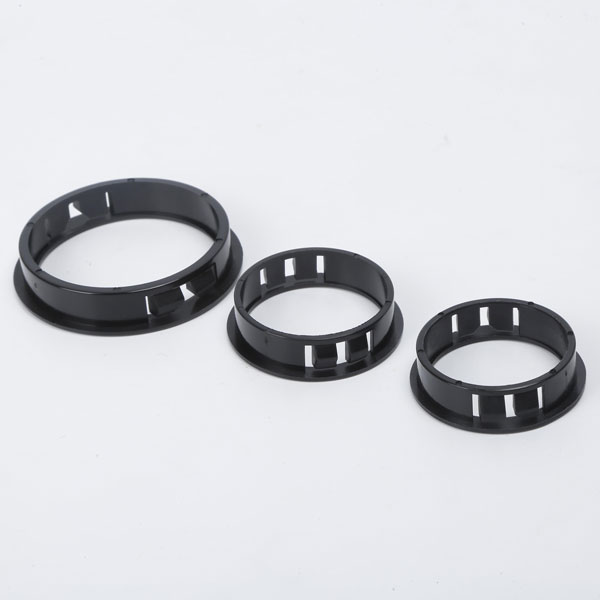

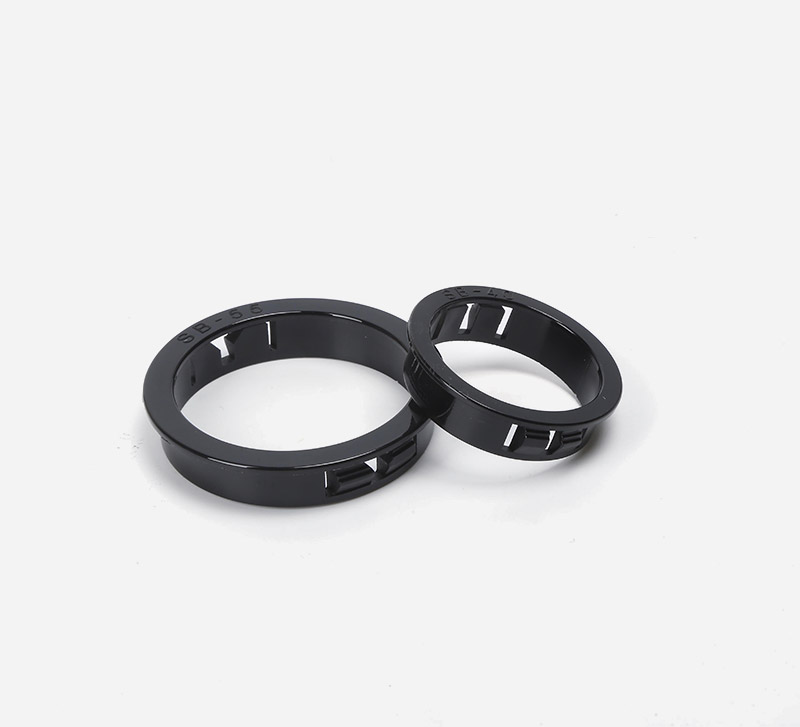

Snap Bushing

Material: Nylon

Working Temperature: -40℃~100℃

Color: Black, White, and other customized color

Size: SB8~SB75

REQUEST AN INQUIRY

DESCRIPTION
DETAILS
PARAMETERS
RELATED PRODUCT
RELATED NEWS

DESCRIPTION

The snap-on bushing is made of nylon 66, with high fire rating, oil and corrosion resistance. It is mainly used to plug the prepared holes on the housings of various cabinets, chassis, etc. It can be used as a preparation hole, or used to plug excess holes to maintain the appearance of the disk. To install, simply drill holes into the base plate and press the hole plugs in.

Installation: The installation process of the grommet usually does not require special tools and can be done manually by the user. During the installation process, you need to pay attention to choosing the appropriate size of the cable sheath to ensure that the wire can pass through smoothly and be effectively protected.

PARAMETER

Model	Min Diameter at the Bottom	Max Diameter at the Bottom	Surface Diameter	Height
SB-8	7.8	8.9	10.9	8.1
SB-9	8.8	10.6	11.9	10 3
SB-10	9.6	11.5	13.2	10.5
SB-11	10.7	13.3	13.9	10.5
SB-12	11.7	14.2	14.8	10.5
SB-13	12.6	14.5	17	10.5
SB-14	13.6	16	17.8	10.5
SB-15	14.8	16.7	17.8	10.5
SB-16	15.6	17.5	19.7	10.8
SB-18	17.7	19.7	21.7	10.8
SB-19	18.7	20.6	23.2	10.8
SB-20	19.7	21.8	23.7	10.8
SB-22	21.6	24	25.4	11.5
SB-25	24.3	26.7	28.2	11.5
SB-26	25.7	27.8	28.8	11.5
SB-28	27.6	29.8	31.4	11.5
SB-30	29.7	31.7	34.1	11.5
SB-32	31.5	34.1	35.7	11.5
SB-35	34.7	36.4	37.2	11.5
SB-38	37.5	39.9	41.5	11.5
SB-40	39.6	42.1	45.3	11.5
SB-45	44.5	46.3	49.7	11.5
SB-50	49.5	51.9	54.5	11.5
SB-55	54.5	57.3	59.4	11.5
SB-60	59.3	62.9	64.9	11.5
SB-63	62.5	65.2	67.6	11.5
SB-65	64.5	68.5	69.9	11.5
SB-70	69.3	72.8	74.9	11.5
SB-75	74.5	77.4	79.5	11.5
