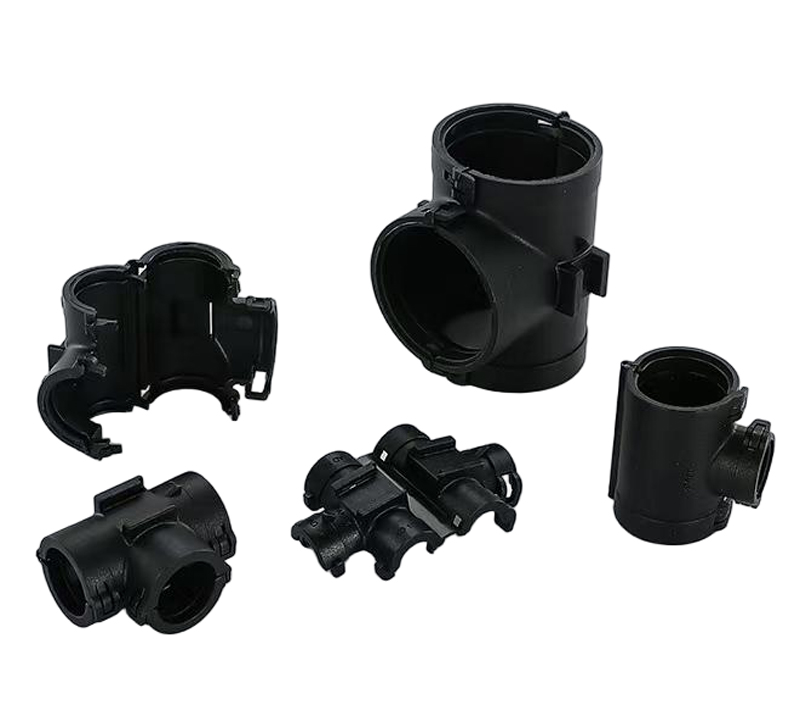

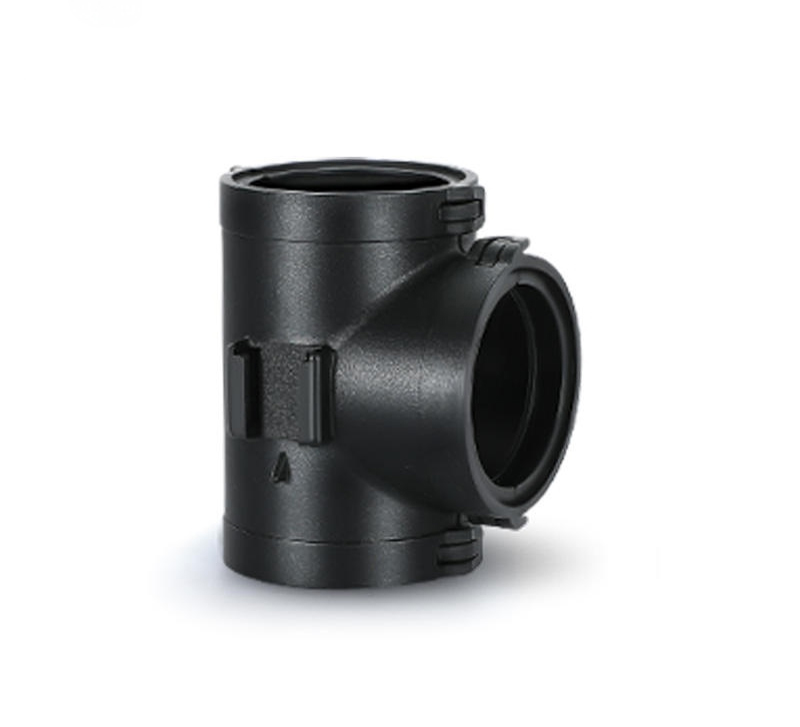

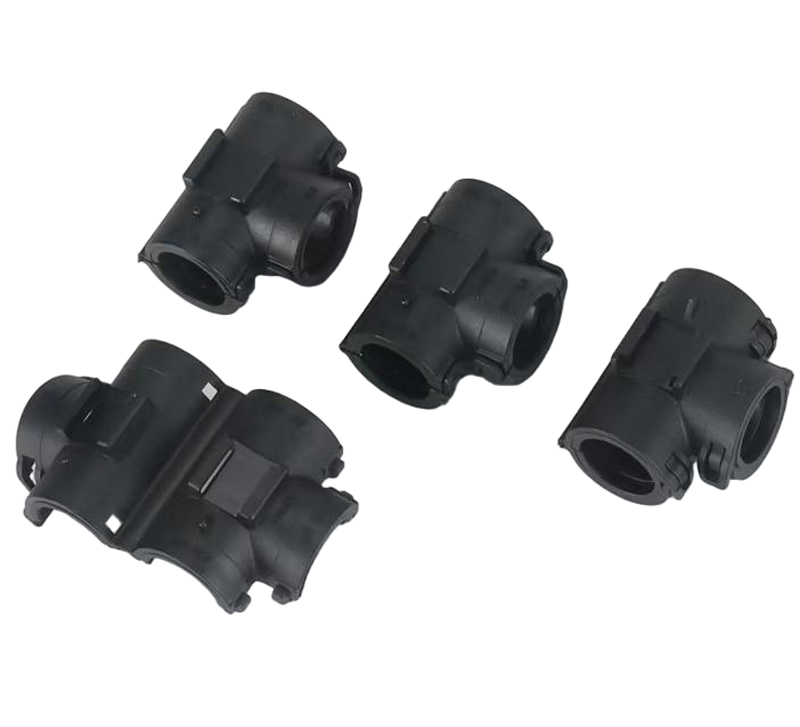

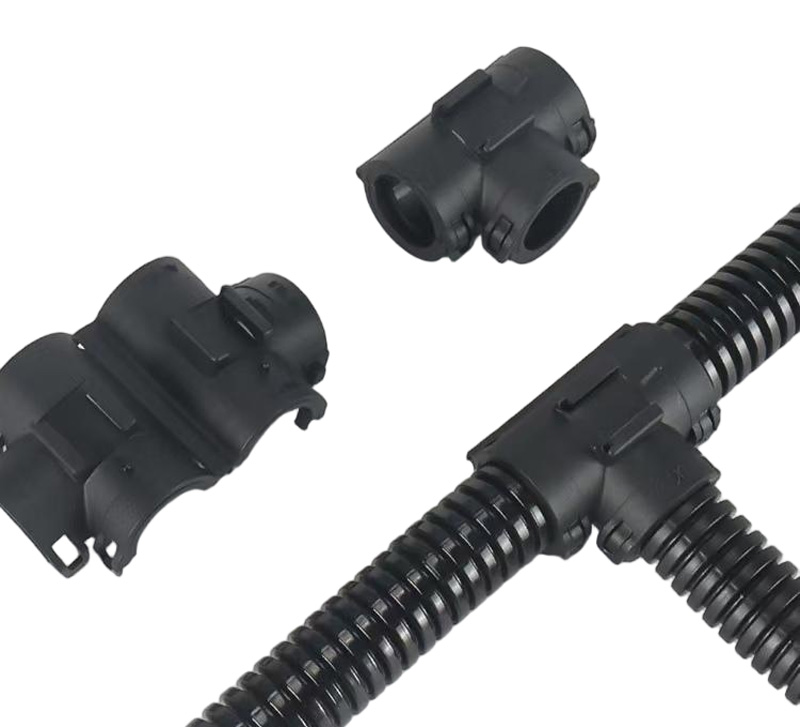

Corrugated Conduit T-shaped Tee Joint

Flexible Nylon Bellows Hose is elastic and can produce displacement under pressure, axial force, lateral force or bending moment. It is a cylindrical thin-walled corrugated shell with multiple transverse corrugations.

The bellows wall is thinner and has higher sensitivity. The measurement range is from tens of Pascals to tens of MPa. Its open end is fixed, the sealed end is in a free state, and an auxiliary coil spring or reed is used to increase elasticity.

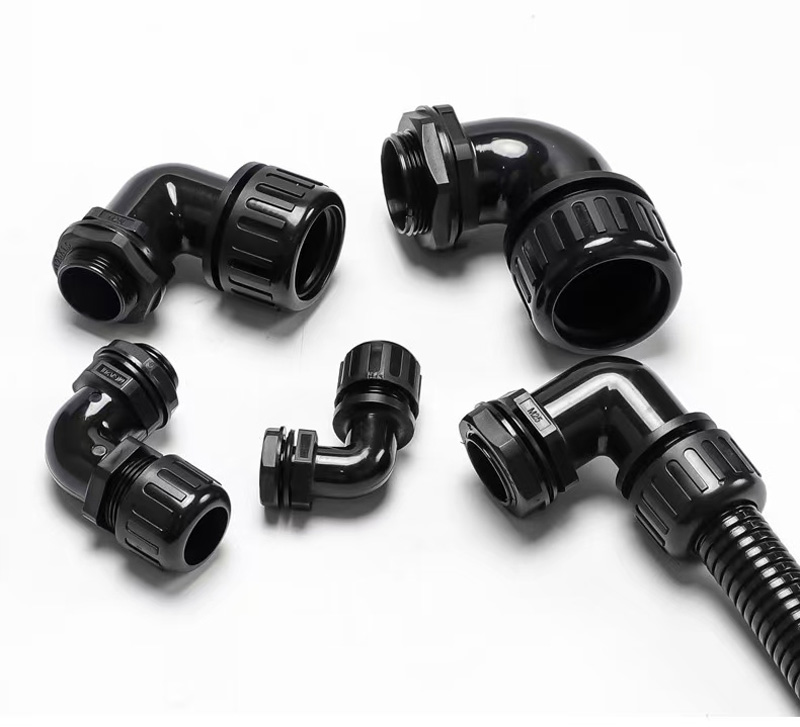

The corrugated conduit elbow offers an exceptional combination of protection and convenience. Its integrated structure (the elbow body and sealing ring work together) and sophisticated thread design provide a reliable waterproof seal and secure fixation between the cable and the corrugated conduit. It also boasts high protection and flame retardancy, making it widely used in machinery, electrical control cabinets, outdoor equipment, and other applications requiring high waterproofing, dust-proofing, and safety. The following describes its core parameters, performance characteristics, specifications, and models:

Core Parameters and Performance Characteristics

Material and Craftsmanship

The main body is made of environmentally friendly PA66 nylon, which combines excellent mechanical strength, corrosion resistance, and electrical insulation, making it suitable for a variety of complex environments.

Full Protection Certification:

Protection Rating: Achieves IP68 protection, completely preventing dust ingress and capable of withstanding long-term submersion in water, providing the highest level of waterproof and dustproof protection.
Fireproof Certification: V0 flame retardant certification ensures effective flame retardancy in open flame environments, ensuring the safety of equipment and personnel. Wide Temperature Range: High-quality materials ensure stable performance in extreme temperatures ranging from -40°C to +125°C, offering resistance to cold, frost, and high temperatures.
Excellent Environmental Adaptability: Excellent resistance to high acids, alkalis, chemicals, and oils, enabling stable operation in a variety of harsh industrial environments.

II. Mainstream Specifications

Product interface threads are primarily available in M (metric) and PG (German).
Note: Custom sizes, colors, and temperature ranges (such as high-temperature rubber seals) are available. Please contact the dealer to confirm specific specifications.

Application: Designed for securing cables and corrugated conduits while providing waterproof protection. Suitable for harsh environments such as machinery, electrical installations, and outdoor environments where exposure to moisture, low and high temperatures, oil, and contaminants is possible, or where flame retardancy and insulation are required.

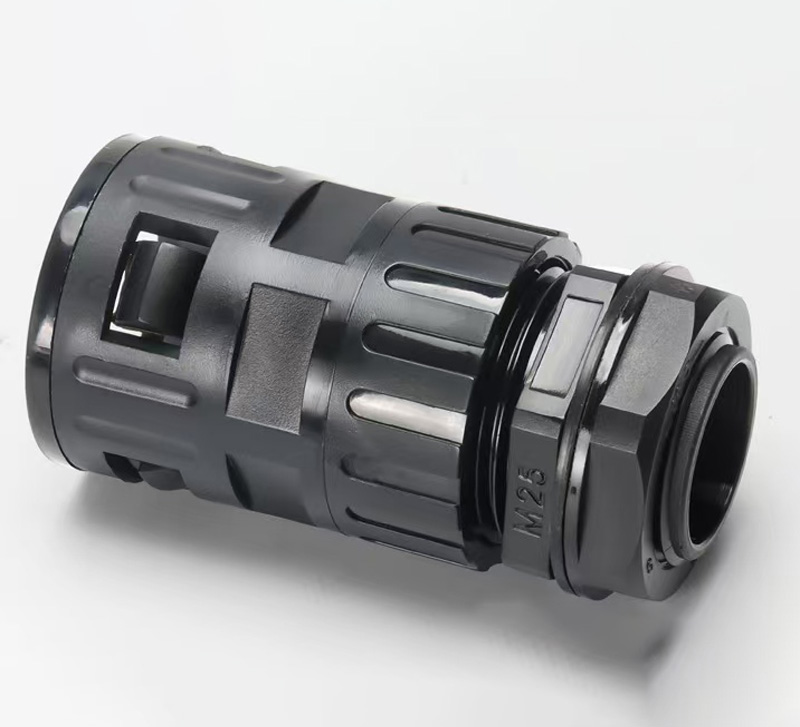

Corrugated Conduit Double Fixed Connector is a professional solution for protection and efficient cabling. Its symmetrical dual-interface design (the main body and sealing component work together) and precise thread structure provide a secure locking and reliable waterproof seal for two bellows or a cable and bellows combination. Combining high protection, flame retardant, and environmental adaptability, it's specifically designed for applications requiring dual pipe fixing in machinery, electrical control cabinets, outdoor equipment, and other applications with stringent requirements for waterproofing, dust-proofing, and safety. The following describes its core parameters, performance features, and specifications:

Core Parameters and Performance Features

Material and Craftsmanship

The main body is made of environmentally friendly PA66 nylon, offering excellent mechanical strength, corrosion resistance, and electrical insulation, suitable for complex industrial environments.

Fully Certified

Protection Rating: IP66/IP68 Available
IP66: Completely dust-proof and resistant to high-pressure water jets
IP68 (Optional): Completely dust-proof and resistant to long-term submersion in water
Flammability Rating: V1 certified, ensuring effective flame retardancy in open flame environments, ensuring equipment and personnel safety. Extreme Environment Adaptability
Temperature Range: -40°C to +125°C
Cold-resistant, frost-resistant, and heat-resistant, ensuring stable performance in extreme operating conditions.
Chemical Resistance: Resistant to high acids, alkalis, oils, and chemical solvents, making it suitable for harsh environments such as the chemical industry and marine applications.

II. Mainstream Specifications

1. Thread Type: PG, M
2. Customization:
Non-standard sizes and colors are available; upgradeable high-temperature rubber seals (-60°C to 200°C) are available. Please contact the manufacturer to confirm specifications for special operating conditions.

Application: Designed to simultaneously secure two corrugated conduits and provide reliable waterproof protection. Suitable for harsh environments such as machinery, electrical installations, and outdoor environments where exposure to moisture, low and high temperatures, oil, dust, or flame retardancy and insulation are required.
