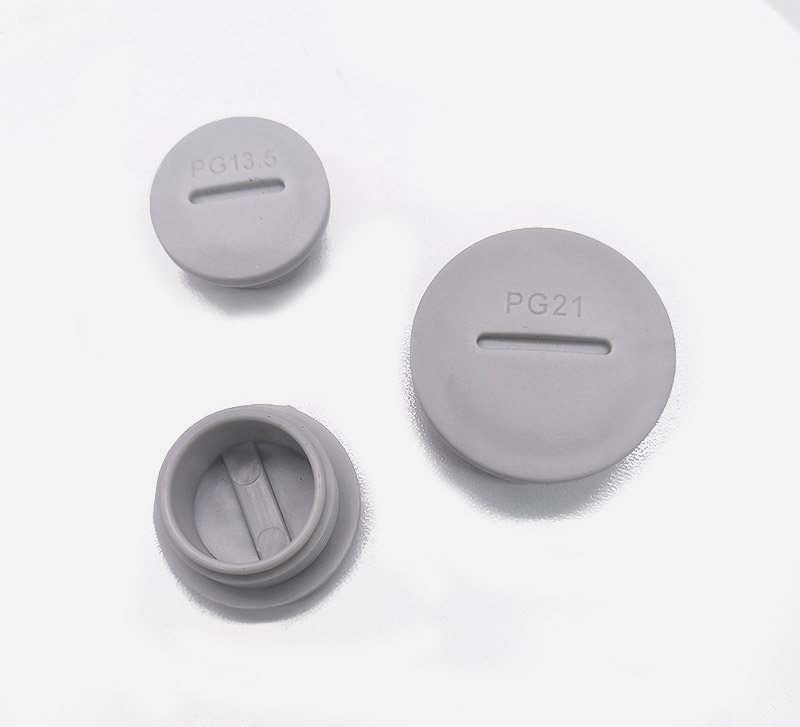

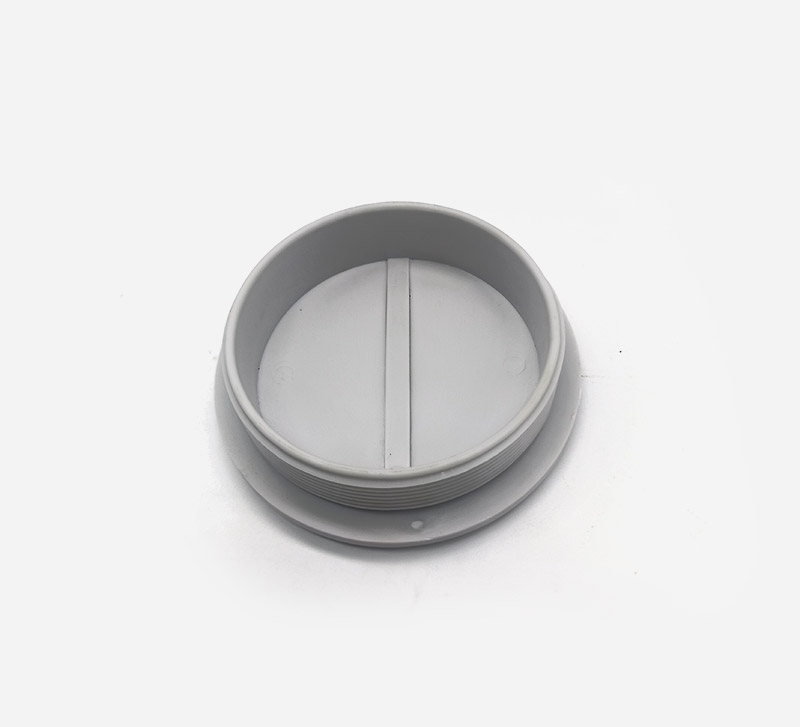

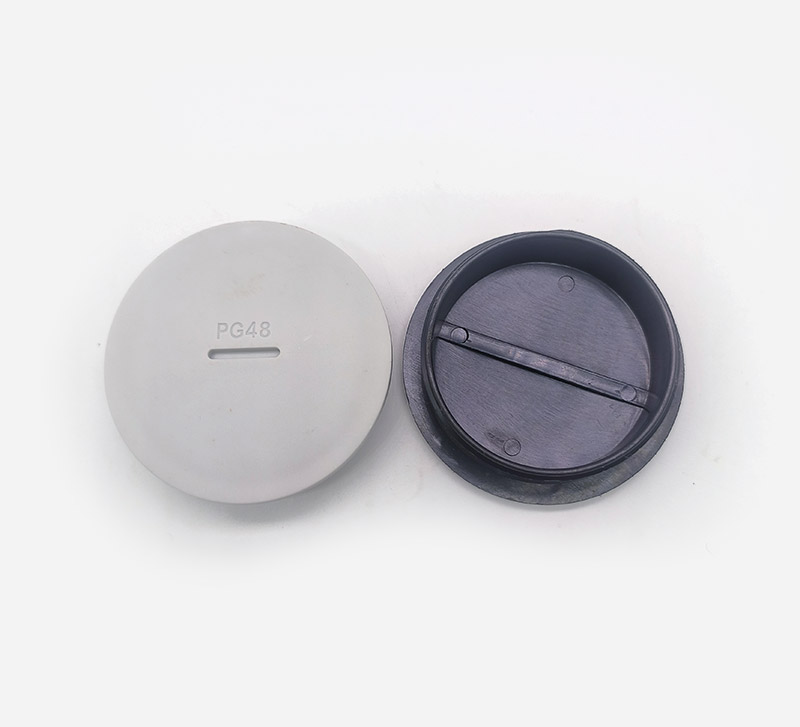

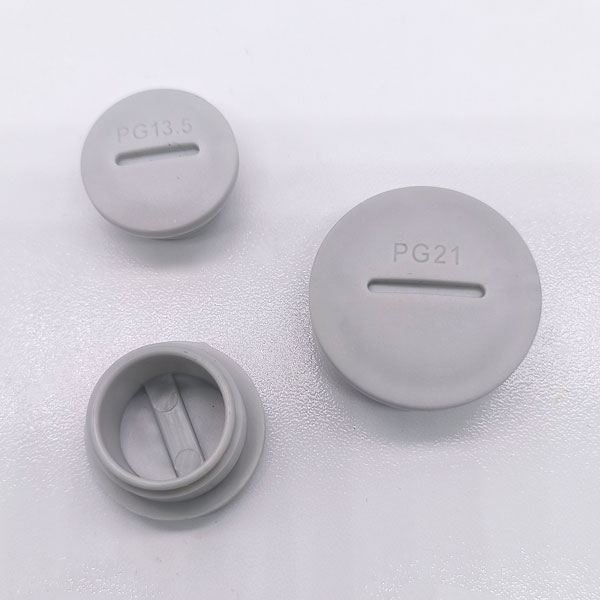

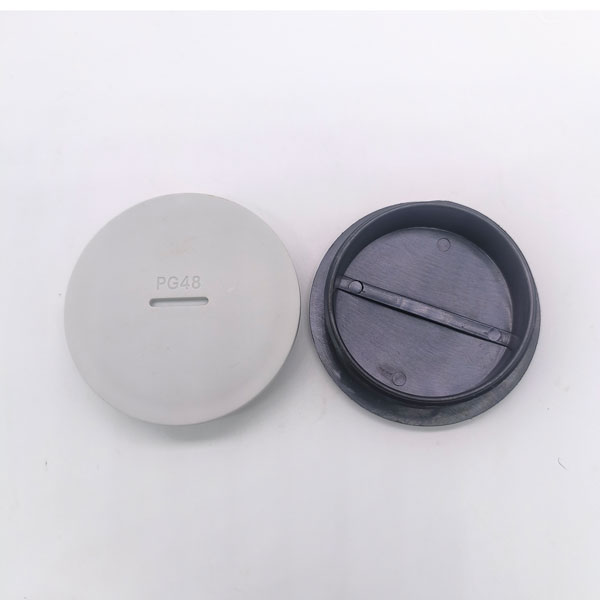

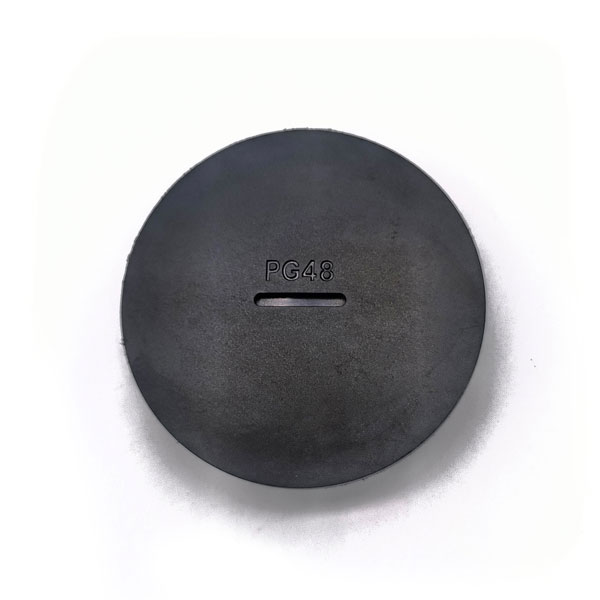

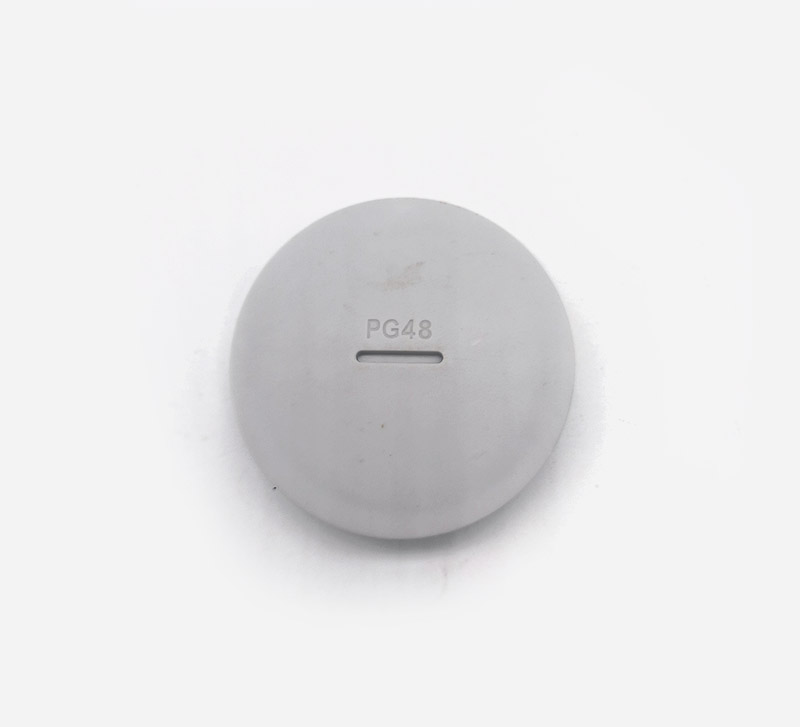

PG Type Nylon Screw Plugs

Material: Nylon

Working Temperature: -40℃~100℃

Size: PG7~PG48

Color: Black, White, and other customized color

REQUEST AN INQUIRY
PG Type Nylon Screw Plugs
PG Type Nylon Screw Plugs
PG Type Nylon Screw Plugs
PG Type Nylon Screw Plugs
PG Type Nylon Screw Plugs
PG Type Nylon Screw Plugs
PG Type Nylon Screw Plugs
PG Type Nylon Screw Plugs
PG Type Nylon Screw Plugs
PG Type Nylon Screw Plugs
DESCRIPTION

PG Type Nylon Screw Plugs is a commonly used sealing and protection device, widely used in various mechanical equipment, electrical equipment and control systems. They are mainly used to prevent moisture, dust and other contaminants from entering the interior of the equipment, thereby protecting the normal operation and extending the service life of the equipment.

Installation: Installing PG threaded plastic plugs is very simple, just screw the threaded end into the opening in the equipment or machinery, and then secure the nut inside the equipment. The specific steps are as follows: 1. Clean the opening: Make sure the opening is clean and free of impurities. 2.Screw in the plug: Align the threaded end of the plug with the opening and screw it in gently by hand. 3.Secure the nut: If necessary, use a wrench or other tool to secure the nut inside the unit.

DETAILS

PARAMETER

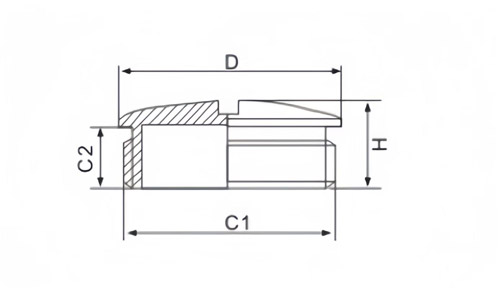

PG Type Model Thread Outer Diameter Thread Length Main Dimensions Dimensions of Cover
PG7 12.5 8.5 12.5 15
PG9 15.2 8.5 13 19
PG11 18.6 9 13 22
PG13.5 20.4 9 13 25
PG16 22.5 10.5 15 27
PG21 28.3 10.5 15.5 33
PG29 37 11.5 16 44
PG36 47 13.5 18 55
PG42 54 13.5 18.5 62
PG48 59.3 14.5 19.5 68
